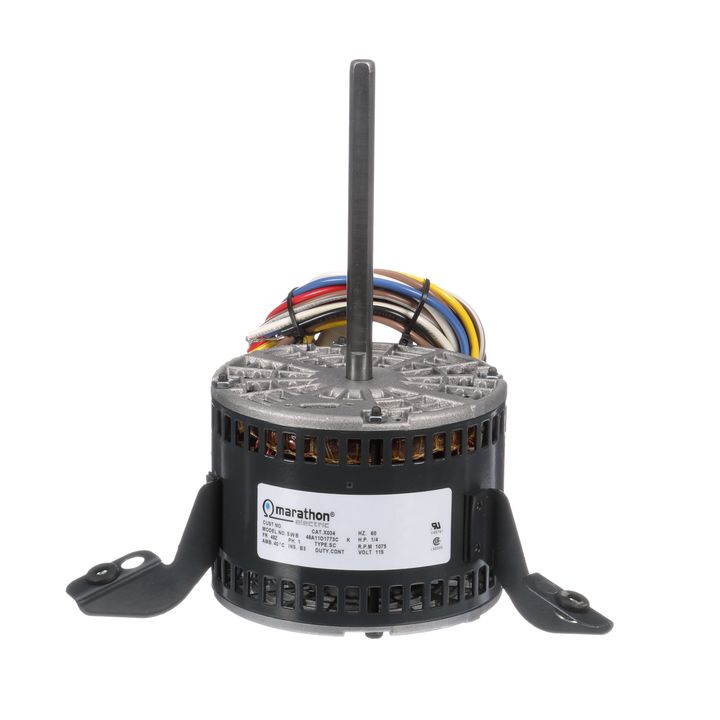

Marathon Electric X036, 1/2 Hp, 1075/4 Rpm, 48Y FR, 115 Vac, 1 PH, Open Air Over, Torsion Flex Mount, Fan Blower-Direct Drive, PSC, 48A11O1772.

**This motor is now a 32 pc. order. Please contact us for delivery information**
X036, 1/2 Hp, 1075/4 Rpm, 48Y FR, 115 Vac, 1 PH, Open Air Over, Torsion Flex Mount, Fan Blower-Direct Drive, PSC, 48A11O1772.

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60 Hz
Voltage:115 V
Current:6.0 A
Speed:1075 rpm
Service Factor:1
Phase:1
Efficiency:64 %
Power Factor:93.5
Duty:Continous
Insulation Class:B
Design Code:NO DESIGN CODE
KVA Code:C
Frame:48Z
Enclosure:Open Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:10
Technical Specifications
Electrical Type:Permanent Split Capacitor
Starting Method:Across The Line
Poles:6
Rotation:Selective Counterclockwise
Mounting:Three Lug Mount
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:11.06 in
Frame Length:4.50 in
Shaft Diameter:0.500 in
Shaft Extension:6.06 in
