Industrial Motors

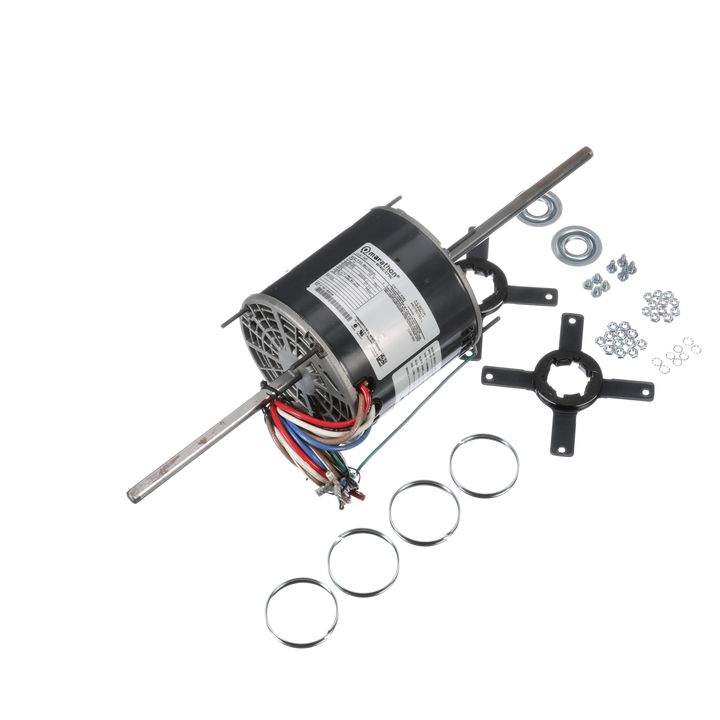

Marathon Electric X058, 1/2 Hp, 1625/3 Rpm, 48Y FR, 208-230 Vac, 1 PH, Open Air Over, Belly Band Thru-Bolt, Double Shaft, Fan & Blower-Direct Drive, PSC, 48A17O2001

Marathon Electric X058, 1/2 Hp, 1625/3 Rpm, 48Y FR, 208-230 Vac, 1 PH, Open Air Over, Belly Band Thru-Bolt, Double Shaft, Fan & Blower-Direct Drive, PSC, 48A17O2001

$464.00
$464.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$464.00 $440.80
Sale

X058, 1/2 Hp, 1625/3 Rpm, 48Y FR, 208-230 Vac, 1 PH, Open Air Over, Belly Band Thru-Bolt, Double Shaft, Fan & Blower-Direct Drive, PSC, 48A17O2001.

Engineering Data

60 Hertz
HP 1/3
Voltage 208-230
kW 0.25 FL Amps 3.4
RPM 1075
FL Eff N/A % SF 1.0

Phase 1
Insulation Class B
Frame 48Y
Duty CONTINUOUSAOM
Enclosure OPAO
Ambient 40
Mounting Extended Studs - Footless
NEMA Design NO DESIGN CODE
Orientation HORIZONTAL
Starting Type PSC 3 SPEED
Assembly F1 ONLY KVA Code E
Drive End Bearing BALL IP Code 10
Opposite End Bearing BALL
Drive End Bearing Size 6203
Rotation FIXED CCW
Opposite End Bearing Size 6203
Weight 16 LB lbs
CE N CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)
