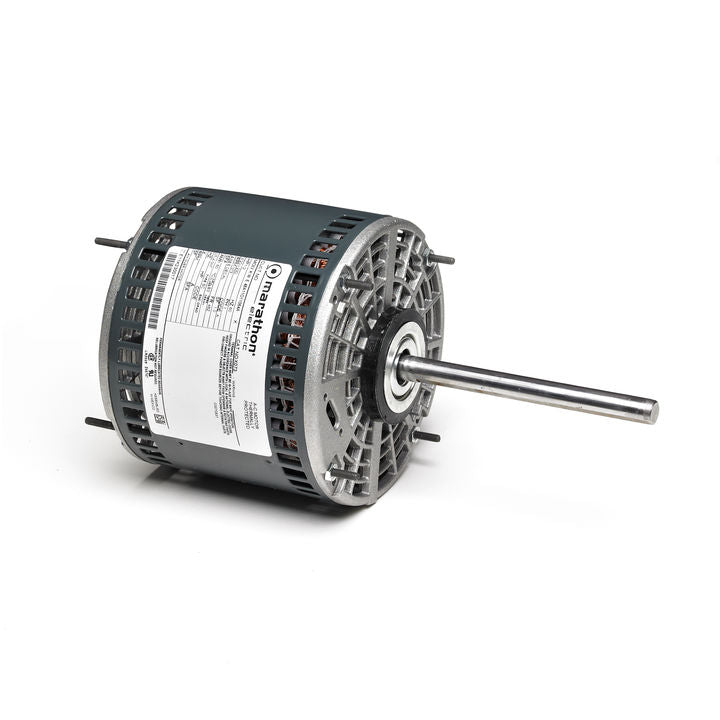

Marathon Electric X072, 1/3 Hp, 1 Rpm, 48Z FR, 208-230 Vac, 3 PH, C-Face Footless, OPAO, Multi-Power, Fan & Blower, Direct Drive, Resilient Base, 48A11T646.

X072, 1/3 Hp, 1 Rpm, 48Z FR, 208-230 Vac, 3 PH, C-Face Footless, OPAO, Multi-Power, Fan & Blower, Direct Drive, Resilient Base, 48A11T646.

Engineering Data

Output HP:0.33 Hp
Output KW:0.25 kW
Frequency:60 Hz
Voltage:208-230 V
Current:2.3-2.3 A
Speed:1075 rpm
Service Factor:1
Phase:1
Efficiency:65.4 %
Power Factor:86
Duty:Continous
Insulation Class:B
Design Code:NO DESIGN CODE
KVA Code:C
Frame:48Z
Enclosure:Totally Enclosed Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:60 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Permanent Split Capacitor
Starting Method:Across The Line
Poles:6
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Round - Extended Studs
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:10.80 in
Frame Length:4.50 in
Shaft Diameter:0.500 in
Shaft Extension:5.06 in
Assembly/Box Mounting:F1 ONLY
