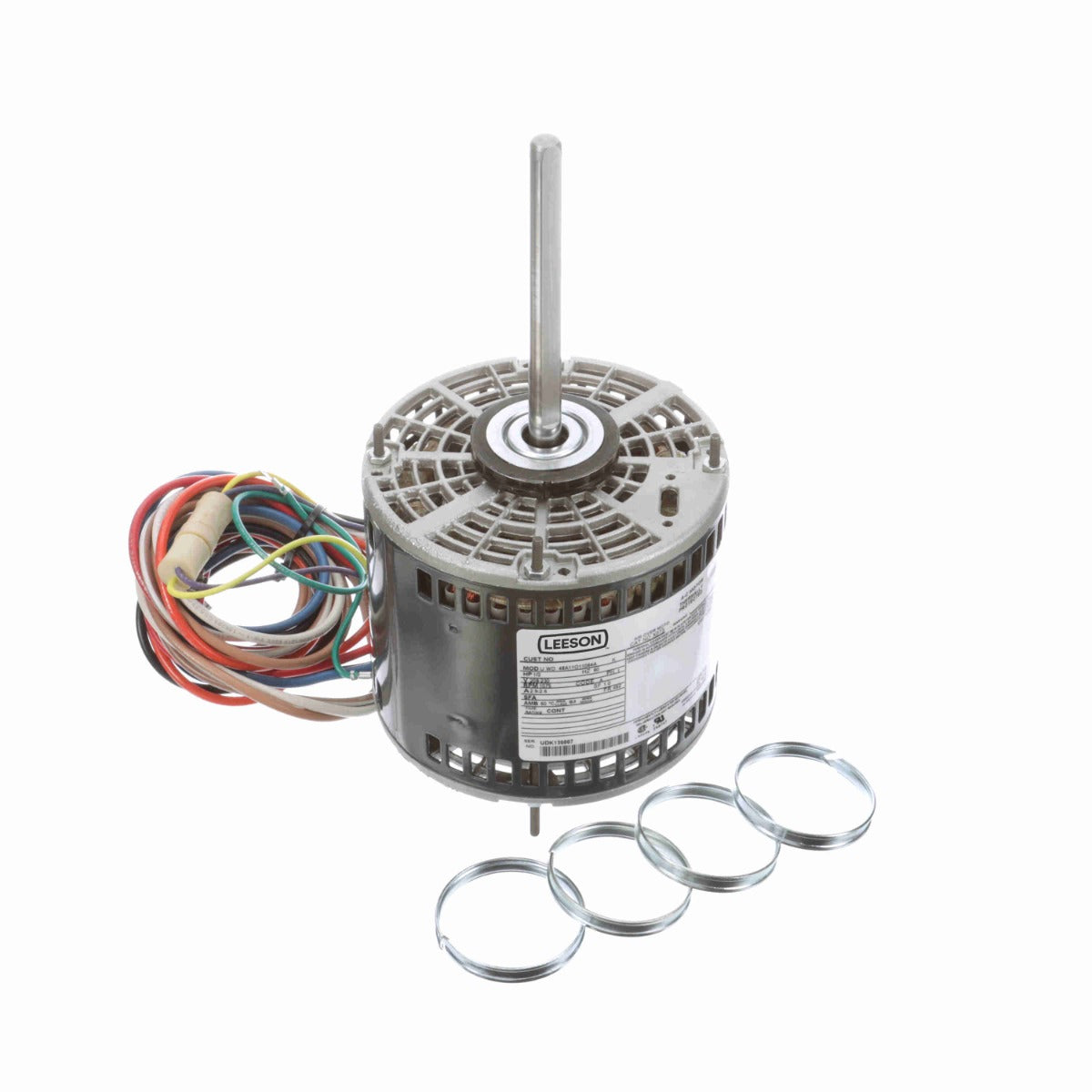

X073, 1/2 Hp, 1075 Rpm, 48Z FR, 208-230 Vac, 1 PH, C-Face Footless, OPAO, Fan and Blower HVAC/R Motor, 48A11O11064.

X073, 1/2 Hp, 1075 Rpm, 48Z FR, 208-230 Vac, 1 PH, C-Face Footless, OPAO, Fan and Blower HVAC/R Motor, 48A11O11064.

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60 Hz
Voltage:208-230 V
Current:2.9-2.6 A
Speed:1075 rpm
Service Factor:1
Phase:1
Efficiency:65.8 %
Power Factor:95.6
Duty:Continuous
Insulation Class:B
Design Code:NO DESIGN CODE
KVA Code:A
Frame:48Z
Enclosure:Open Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:60 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:10
Technical Specifications
Electrical Type:Permanent Split Capacitor
Starting Method:Across The Line
Poles:6
Rotation:Selective Counterclockwise
Mounting:Resilient Ring - Extended Studs
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:4.75 in
Frame Length:4.25 in
Shaft Diameter:0.500 in
Shaft Extension:4.75 in
Assembly/Box Mounting:F1 ONLY
