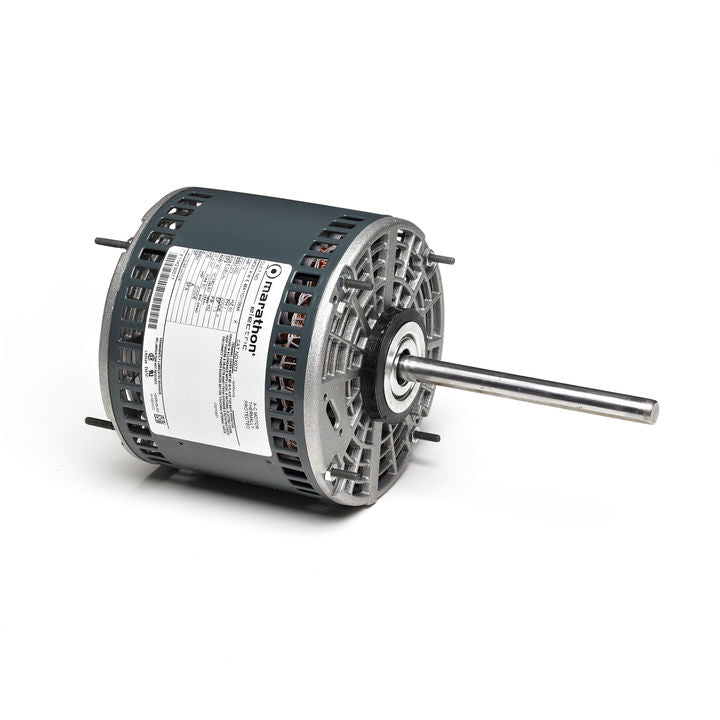

Marathon Electric X074, 3/4 Hp, 1075 Rpm, 48Y FR, 115 Vac, 1 PH, C-Face Footless, OPAO, Fan and Blower HVAC/R Motor, 48A11O11042.

X074, 3/4 Hp, 1075 Rpm, 48Y FR, 115 Vac, 1 PH, C-Face Footless, OPAO, Fan and Blower HVAC/R Motor, 48A11O11042.

Engineering Data

Output HP:0.75 Hp
Output KW:0.56 kW
Frequency:60 Hz
Voltage:115 V
Current:7.8 A
Speed:1075 rpm
Service Factor:1
Phase:1
Efficiency:68.5 %
Power Factor:95.5
Duty:Continous
Insulation Class:B
Design Code:NO DESIGN CODE
KVA Code:C
Frame:48Y
Enclosure:Open Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:10
Technical Specifications
Electrical Type:Permanent Split Capacitor
Starting Method:Across The Line
Poles:6
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Resilient Ring - Extended Studs
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:12.22 in
Frame Length:5.50 in
Shaft Diameter:0.500 in
Shaft Extension:5 in
Assembly/Box Mounting:F1 ONLY
