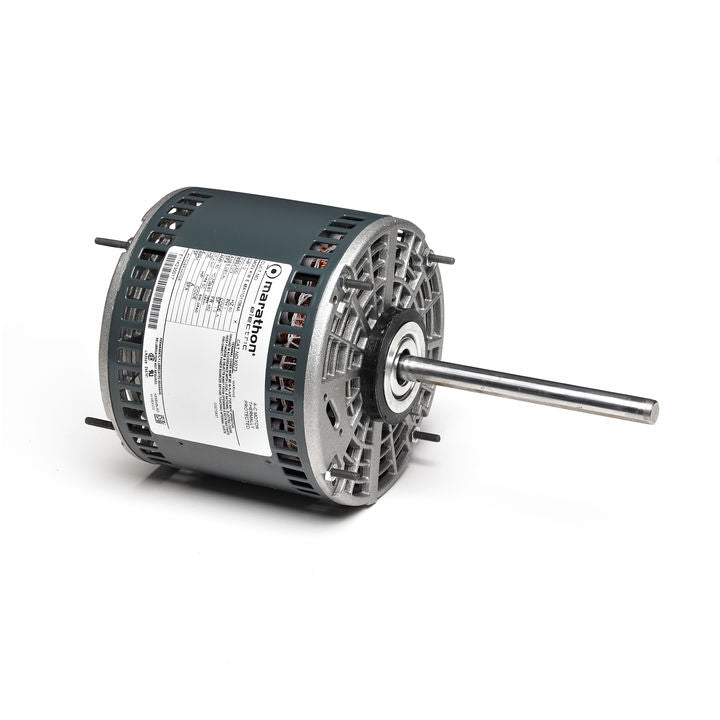

Marathon Electric X076, 1/4 Hp, 1075-2 Rpm, 48Y FR, 230 Vac, 3 PH, C-Face Footless, TEAO, Multi-Power, Fan & Blower, Direct Drive, Resilient Base, 48A11T11006.

X076, 1/4 Hp, 1075-2 Rpm, 48Y FR, 230 Vac, 3 PH, C-Face Footless, TEAO, Multi-Power, Fan & Blower, Direct Drive, Resilient Base, 48A11T11006.

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60 Hz
Voltage:208-230 V
Current:2.6-2.5 A
Speed:1075 rpm
Service Factor:1
Phase:1
Efficiency:71.8 %
Power Factor:95.5
Duty:Continous
Insulation Class:B
Design Code:NO DESIGN CODE
KVA Code:C
Frame:48Z
Enclosure:Totally Enclosed Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:60 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:NIP Code:43
Technical Specifications
Electrical Type:Permanent Split Capacitor
Starting Method:Across The Line
Poles:6
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Round - Extended Studs
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:11.30 in
Frame Length:5.00 in
Shaft Diameter:0.500 in
Shaft Extension:5.06 in
Assembly/Box Mounting:F1 ONLY
