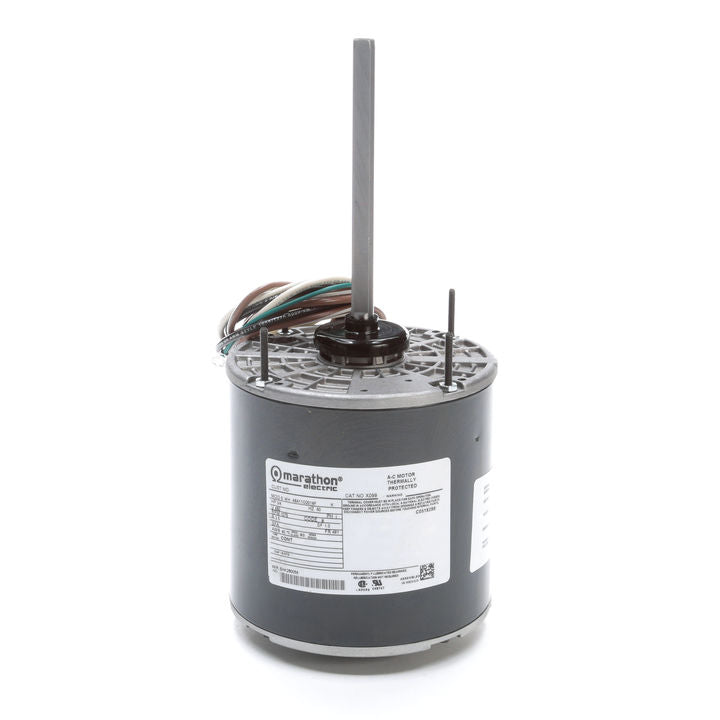

Marathon Electric X099, 3/4 Hp, 1075/1 Rpm, 48Y FR, 460 Vac, Thru-Bolt, Shaft Up or Horizontal, Condenser Fan/Heat Pump, PSC, Open Air Over, 48A11O2016

X099, 3/4 Hp, 1075/1 Rpm, 48Y FR, 460 Vac, Thru-Bolt, Shaft Up or Horizontal, Condenser Fan/Heat Pump, PSC, Open Air Over, 48A11O2016

Engineering Data

Output HP : 0.75 Hp
Output KW : 0.56 kW
Frequency : 60 HzV
oltage : 460 V
Current : 2.5 A
Speed : 1075 rpm
Service Factor : 1
Phase : 1
Efficiency : 65.5 %
Duty : Continous
Insulation Class : B
Design Code : NO
DESIGN CODE KVA
Code : B
Frame : 48Y
Enclosure : Open Air Over Overload
Protector : Automatic Lock Rotor Only
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : N IP Code : 01
Technical Specifications
Electrical Type : Permanent Split Capacitor
Starting Method : Across The Line
Poles : 6
Rotation : Selective Counterclockwise
Mounting : Round - Extended Studs
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : Single Special Extension
Overall Length : 12.44 in
Shaft Diameter : 0.500 in
Shaft Extension : 6.06 in
Assembly/Box Mounting : F1 Only
