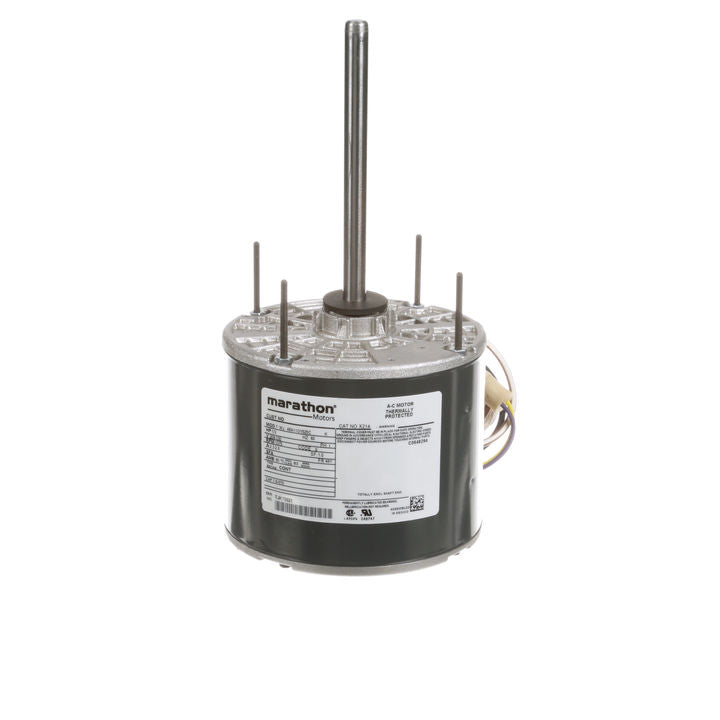

Marathon Electric X214, 1/3 Hp, 1075/1 Rpm, 48Y FR, 208-230 Vac, Condenser Fan/Heat Pump, PSC Open Air Over Motors, Thur-Bolt, 48A11O1525.

X214, 1/3 Hp, 1075/1 Rpm, 48Y FR, 208-230 Vac, Condenser Fan/Heat Pump, PSC Open Air Over Motors, Thur-Bolt, 48A11O1525.

Engineering Data

Output HP : 0.33 Hp
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 208-230 V
Current : 2.3-2.6 A
Speed : 1075 rpm
Service Factor : 1
Phase : 1
Efficiency : 60 %
Duty : Continous
Insulation Class : B
Design Code : NO DESIGN CODE
KVA Code : D
Frame : 48Y
Enclosure : Open Air Over
Overload Protector : Automatic Lock Rotor Only
Ambient Temperature : 60 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : N IP
Code : 10
Technical Specifications
Electrical Type : Permanent Split Capacitor Starting
Method : Across The Line
Poles : 6
Rotation : Selective Counterclockwise
Mounting : Round - Extended Studs
Motor Orientation : Shaft Up
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled
Steel Shaft Type : Single Special Extension
Overall Length : 11.43 in
Frame Length : 4.00 in
Shaft Diameter : 0.500 in
Shaft Extension : 6.06 in
Assembly/Box Mounting : W8
