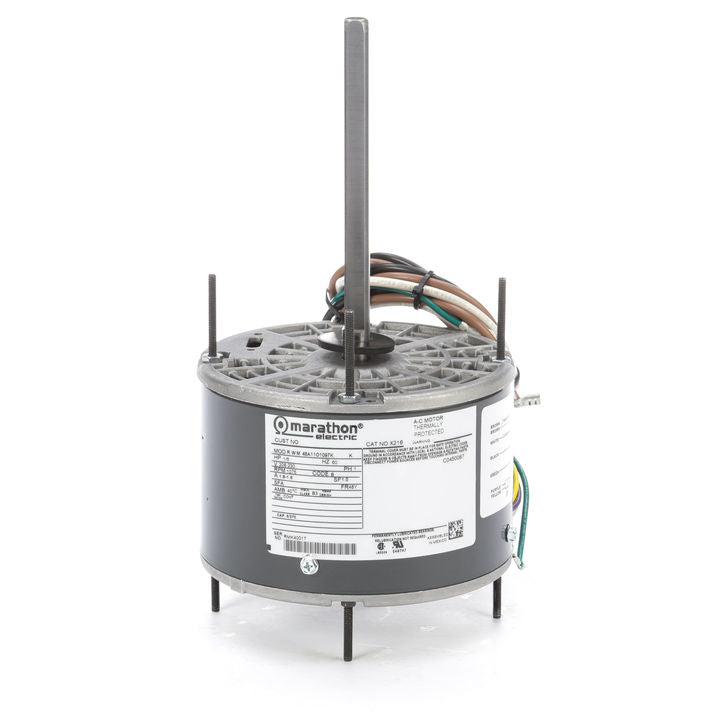

Marathon Electric X216, 1/5 Hp, 1075 Rpm, 48Y FR, 208-230 Vac, 1 PH, OPAO, Thru-Bolt, Condenser Fan Motor, 48A11O1097

X216, 1/5 Hp, 1075 Rpm, 48Y FR, 208-230 Vac, 1 PH, OPAO, Thru-Bolt, Condenser Fan Motor, 48A11O1097

Engineering Data

Output HP : 0.20 Hp
Output KW : 0.15 kW
Frequency : 60 Hz
Voltage : 208-230 V
Current : 1.8-1.6 A
Speed : 1075 rpm
Service Factor : 1
Phase : 1
Efficiency : 55 %
Duty : Continous
Insulation Class : B
Design Code : NO DESIGN CODE KVA
Code : B Frame : 48Y
Enclosure : Open Air Over
Overload Protector : Automatic Lock Rotor Only
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : N
IP Code : 10
Technical Specifications
Electrical Type : Permanent Split Capacitor Starting
Method : Across The Line
Poles : 6
Rotation : Selective Counterclockwise
Mounting : Round - Extended Studs Motor
Orientation : Horizontal Drive
End Bearing : Ball Opp Drive End Bearing : Ball Frame
Material : Rolled Steel
Shaft Type : Single Special Extension
Overall Length : 9.81 in
Frame Length : 3.25 in
Shaft Diameter : 0.500 in
Shaft Extension : 6.06 in
Assembly/Box
Mounting : F1 Only
