Industrial Motors

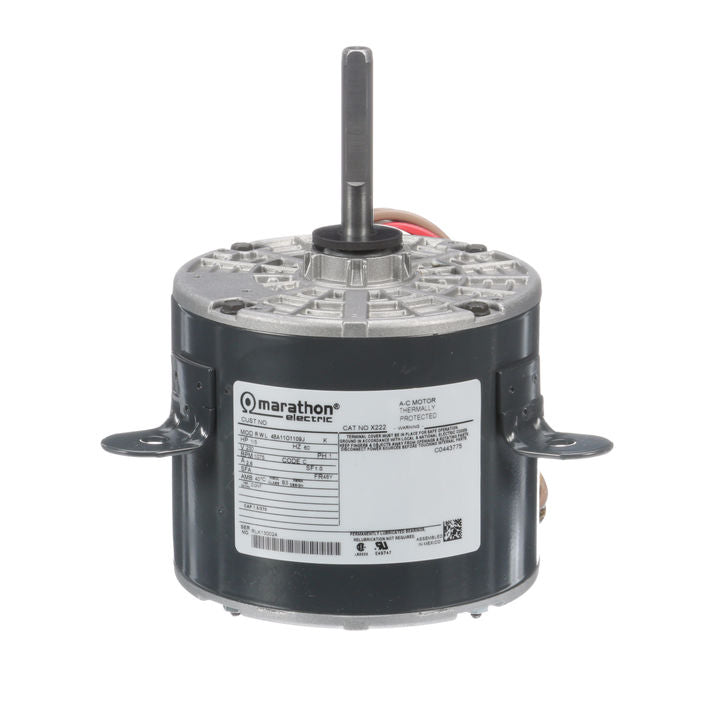

Marathon Electric X222, 1/3 Hp, 1075/2 Rpm, 48Y FR, 230 Vac, 1 PH, OEM: Carrier, PSC, Open Air Over, 48A11O1109.

Marathon Electric X222, 1/3 Hp, 1075/2 Rpm, 48Y FR, 230 Vac, 1 PH, OEM: Carrier, PSC, Open Air Over, 48A11O1109.

$515.00
$515.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$515.00 $489.25
Sale

X222, 1/3 Hp, 1075/2 Rpm, 48Y FR, 230 Vac, 1 PH, OEM: Carrier, PSC, Open Air Over, 48A11O1109.

Engineering Data

Nameplate - 60 HZ
Hertz 60 HP 1/3
KW 0.25 RPM 1075
FL Eff 66.0 Volts 230
FL Amps 2.6 SF 1.0

Motor Wt. 15 LB
UL Recognized Construction and Protector
CE N CSA Y

Phase 1
Insulation Class B
Frame Size 48Y
Enclosure OPAO
Ambient 40
Mount Type Three Lug Mount
Therm.Prot. Automatic Protector (under locked rotor only)
Orientation HORIZONTAL
Nema Design NO DESIGN CODE
Assembly F1 ONLY
Starting Method PSC 2 SPEED PE Bearing Type BALL
KVA Code C
OPE Bearing Type BALL
IP Code 10
Drive End Bearing Size 6203
Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
