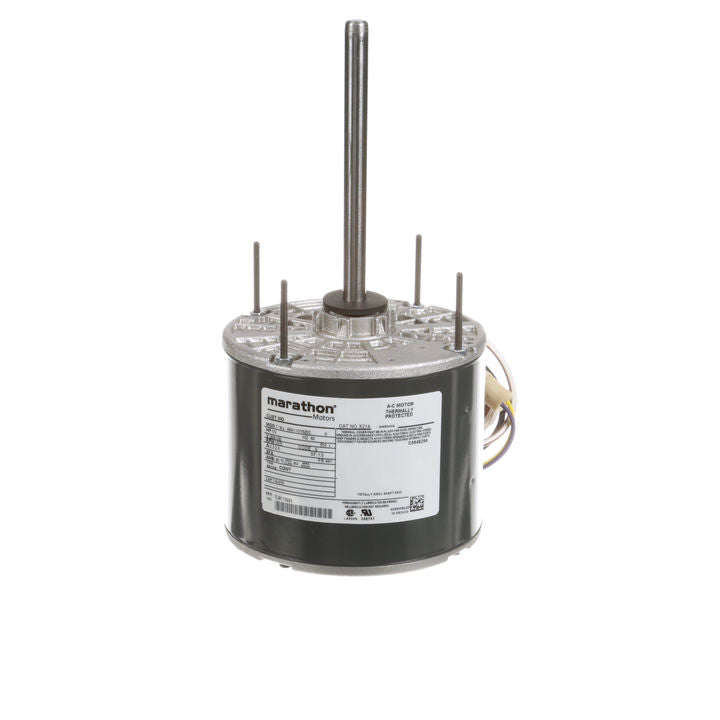

Marathon Electric X259, 1/3 Hp, 1140 Rpm, 48Y FR, 208-230/460 V, OEM: Liebert, Three Phase, Resilient Base, 56T11O15.

X259, 1/3 Hp, 1140 Rpm, 48Y FR, 208-230/460 V, OEM: Liebert, Three Phase, Resilient Base, 56T11O15.

Engineering Data

Output HP:0.33 Hp
Output KW:0.25 kW
Frequency:60 Hz
Voltage:208-230/460 V
Current:1.8-1.8/0.90 A
Speed:1140 rpm
Service Factor:1
Phase:3
Efficiency:72 %
Power Factor:52.5
Duty:Continuous
Insulation Class:B
Design Code:B
KVA Code:M
Frame:56Z
Enclosure:Open Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:CE:NIP Code:10
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:6
Rotation:Reversible
Resistance Main:39 Ohms
Mounting:Resilient Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:10.06 in
Frame Length:6.50 in
Shaft Diameter:0.625 in
Shaft Extension:1.56 in
Assembly/Box Mounting:F1 ONLY
