Industrial Motors

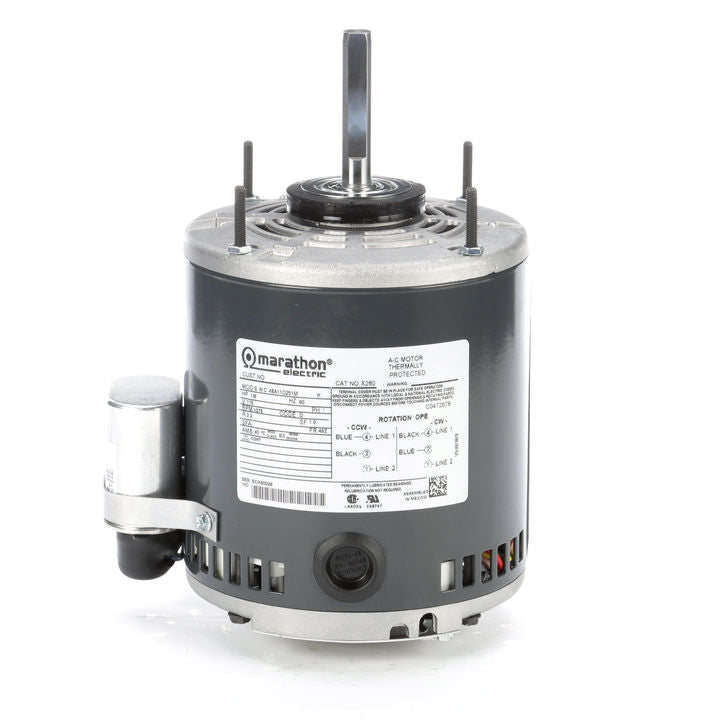

X260, 1/6 HP, 1140 Rpm, 48Y FR, 115 Vac, 1 PH, Permanent Split Capacitor, Resilient Rings - Extended Studs, 48A11O251 Open Air Over OEM Greenheck Fan Motor

X260, 1/6 HP, 1140 Rpm, 48Y FR, 115 Vac, 1 PH, Permanent Split Capacitor, Resilient Rings - Extended Studs, 48A11O251 Open Air Over OEM Greenheck Fan Motor

$523.00
$523.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$523.00 $496.85
Sale

X260, 1/6 HP, 1140 Rpm, 48Y FR, 115 Vac, 1 PH, Permanent Split Capacitor, Resilient Rings - Extended Studs, 48A11O251 Open Air Over OEM Greenheck Fan Motor.

Engineering Data

Nameplate - 60 HZ
Hertz 60 HP 1/6
KW 0.13 RPM 1075
FL Eff 56.4 Volts 115
FL Amps 2.2 SF 1.0

Motor Wt. 13 LB
UL Recognized Construction and Protector
CE N CSA Y

Phase 1
Insulation Class B
Frame Size 48Z
Enclosure OPAO
Ambient 40
Mount Type Resilient Rings - Extended Studs
Therm.Prot. Automatic Protector (under locked rotor only)
Orientation HORIZONTAL
Nema Design NO DESIGN CODE
Assembly F1 ONLY
Starting Method PSC 1 SPEED PE
Bearing Type BALL
KVA Code D
OPE Bearing Type BALL
IP Code 10
Drive End Bearing Size 6203
Rotation SELECTIVE CCW
Opposite End Bearing Size 6203
