Industrial Motors

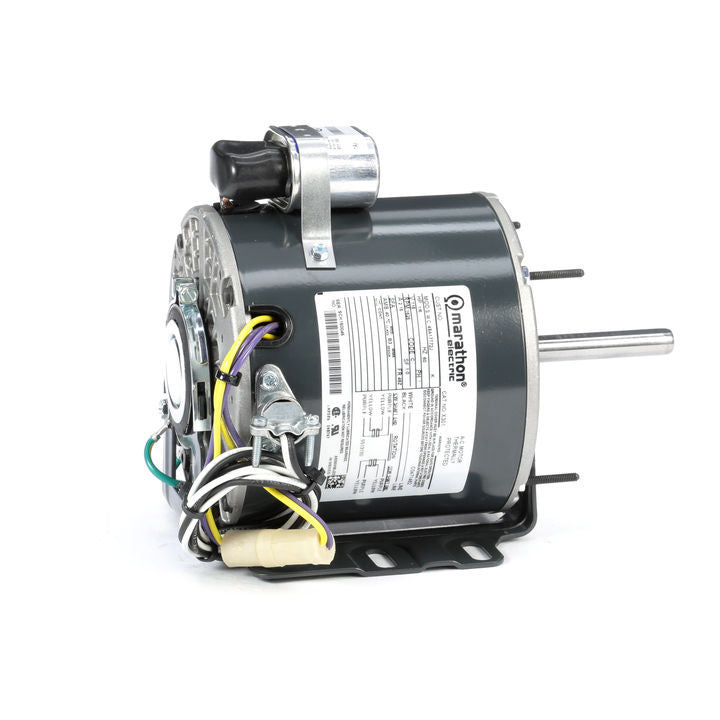

Marathon Electric X301, 1/6 Hp, 1625 Rpm, 48Y FR, 115 Vac, 3 PH, TEAO, Resilient Base, Unit Heater Fan, PSC, 48A17T72

Marathon Electric X301, 1/6 Hp, 1625 Rpm, 48Y FR, 115 Vac, 3 PH, TEAO, Resilient Base, Unit Heater Fan, PSC, 48A17T72

$415.00
$415.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$415.00 $394.25
Sale

X301, 1/6 Hp, 1625 Rpm, 48Y FR, 115 Vac, 3 PH, TEAO, Resilient Base, Unit Heater Fan, PSC, 48A17T72

Engineering Data

60 Hertz
HP 1/6
Voltage 115
kW .125
FL Amps 2.15
RPM 1625
FL Eff N/A % SF 1.0

Phase 1
Insulation Class B
Frame 48Y
Duty CONTINUOUSAOM
Enclosure TEAO
Ambient 40
Mounting Resilient Base - Extended Studs
NEMA Design NO DESIGN CODE
Orientation HORIZONTAL
Starting Type PSC 1 SPEED
Assembly F1 ONLY
KVA Code C
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size N/A
Rotation SELECTIVE CCW
Opposite End Bearing Size N/A
Weight 13 LB lbs
CE N CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)

View full details

Attachments
