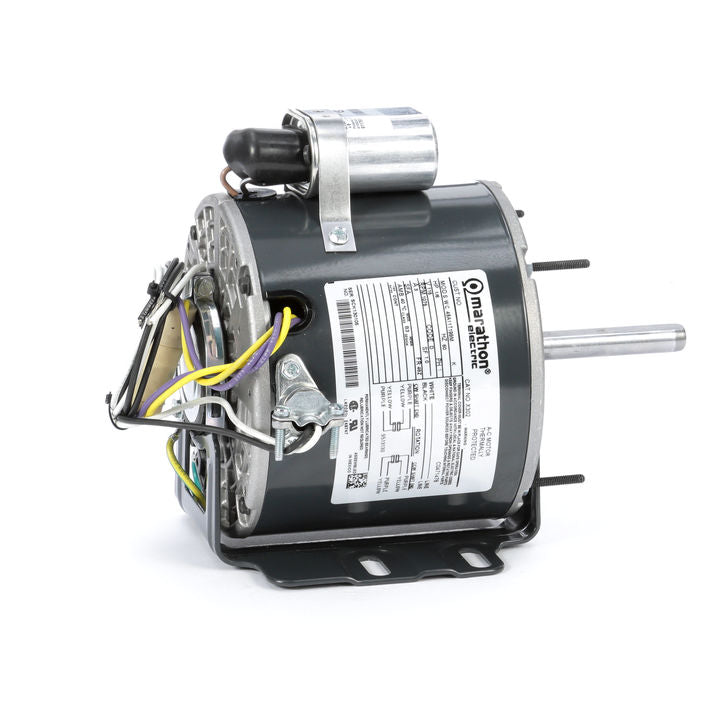

Marathon Electric X302, 1/6 Hp, 1075 Rpm, 48Y FR, 115 Vac, 1 PH, TEAO, Resilient Base, Unit Heater Fan, PSC, 48A11T199.

X302, 1/6 Hp, 1075 Rpm, 48Y FR, 115 Vac, 1 PH, TEAO, Resilient Base, Unit Heater Fan, PSC, 48A11T199.

Engineering Data

Output HP : 0.17 Hp
Output KW : 0.13 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 3.0 A
Speed : 1075 rpm
Service Factor : 1
Phase : 1
Efficiency : 55 %
Duty : Continous
Insulation Class : B
Design Code : NO DESIGN CODE
KVA Code : D
Frame : 48Z
Enclosure : Totally
Enclosed Air Over
Overload Protector : Automatic Lock Rotor Only
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : N IP
Code : 43
Technical Specifications
Electrical Type : Permanent Split Capacitor
Starting Method : Across The Line
Poles : 6 Rotation : Selective Counterclockwise
Mounting : Resilient Base - Extended Studs
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled
Steel Shaft Type : Single Special Extension
Overall Length : 8.50 in
Frame Length : 4.25 in
Shaft Diameter : 0.500 in
Shaft Extension : 2.81 in
Assembly/Box Mounting : F1 Only
