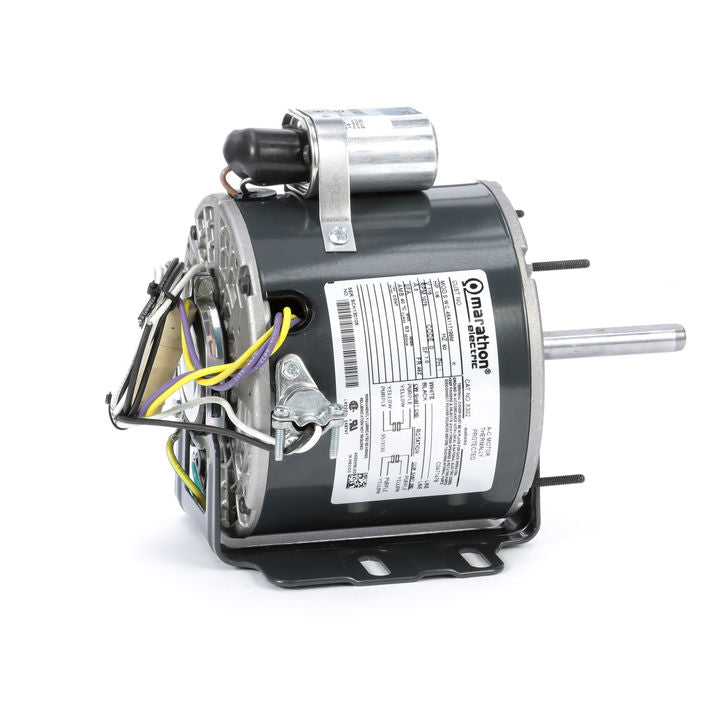

Marathon Electric X303, 1/4 Hp, 1075 Rpm, 48Y FR, 115 Vac, 1 PH, TEAO, Resilient Base-Extended Stud, Unit Heater Fan, PSC, 048A11T198.

Marathon Electric X303, 1/4 Hp, 1075 Rpm, 48Y FR, 115 Vac, 1 PH, TEAO, Resilient Base-Extended Stud, Unit Heater Fan, PSC, 048A11T198.

$505.00
$505.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$505.00 $479.75
Sale

X303, 1/4 Hp, 1075 Rpm, 48Y FR, 115 Vac, 1 PH, TEAO, Resilient Base-Extended Stud, Unit Heater Fan, PSC, 048A11T198.

Engineering Data

60 Hertz
HP 1/4
Voltage 115
kW .187
FL Amps 4.1
RPM 1075
FL Eff N/A %
SF 1.0

Phase 1
Insulation Class B
Frame 48Y
Duty CONTINUOUSAOM
Enclosure TEAO
Ambient 40
Mounting Resilient Base - Extended Studs
NEMA Design NO DESIGN CODE
Orientation HORIZONTAL
Starting Type PSC 1 SPEED
Assembly F1 ONLY
KVA Code D
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size NONE
Rotation SELECTIVE CCW
Opposite End Bearing Size NONE
Weight 14.4 LB lbs
CE N CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)
