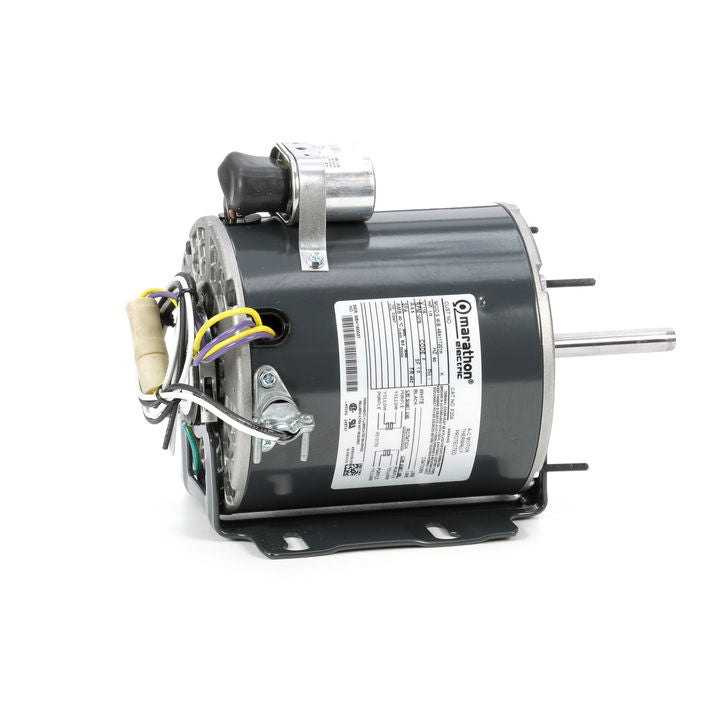

Marathon Electric X304, 1/3 Hp, 1075 Rpm, 48Y FR, 115 Vac, 1 PH, TEAO, Resilient Base, Unit Heater Fan, PSC, 48A11T201

X304, 1/3 Hp, 1075 Rpm, 48Y FR, 115 Vac, 1 PH, TEAO, Resilient Base, Unit Heater Fan, PSC, 48A11T201

Engineering Data

Output HP : 0.33 Hp
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 6.5 A
Speed : 1075 rpm
Service Factor : 1
Phase : 1
Efficiency : 70 %
Duty : Continous
Insulation Class : B
Design Code : NO DESIGN CODE KVA
Code : F
Frame : 48Z
Enclosure : Totally Enclosed Air Over
Overload Protector : Auto Lock Rotor Only
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203 Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : N IP Code : 43
Technical Specifications
Electrical Type : Permanent Split Capacitor
Starting Method : Across The Line Poles : 6
Rotation : Selective Counterclockwise
Mounting : Resilient Base - Extended Studs Motor
Orientation : Horizontal Drive End
Bearing : Ball Opp Drive
End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : Single Special Extension
Overall Length : 9.75 in
Frame Length : 5.50 in
Shaft Diameter : 0.500 in
Shaft Extension : 2.81 in
Assembly/Box Mounting : F1 Only
