Industrial Motors

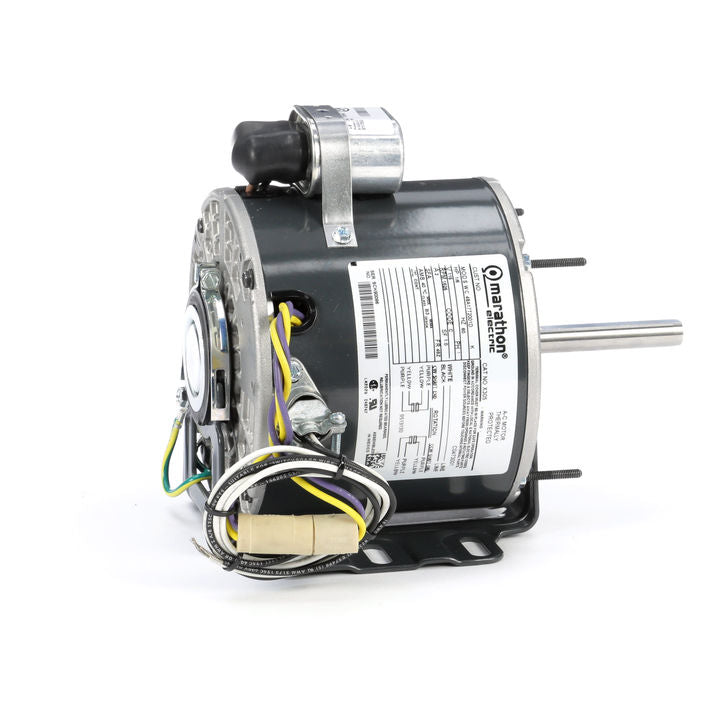

Marathon Electric X305, 1/6 Hp, 1625 Rpm, 48Y FR, 115 Vac, 1 PH, TEAO, Resilient Base, Unit Heater Fan, PSC, 48A17T2001.

Marathon Electric X305, 1/6 Hp, 1625 Rpm, 48Y FR, 115 Vac, 1 PH, TEAO, Resilient Base, Unit Heater Fan, PSC, 48A17T2001.

$462.00
$462.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$462.00 $438.90
Sale

X305, 1/6 Hp, 1625 Rpm, 48Y FR, 115 Vac, 1 PH, TEAO, Resilient Base, Unit Heater Fan, PSC, 48A17T2001.

Engineering Data

60 Hertz
HP 1/6
Voltage 115
kW 0.13
FL Amps 2
RPM 1625

FL Eff N/A %
SF 1.0

Phase 1
Duty CONT. AOM
Enclosure TEAO
Ambient 40
Mounting Resilient Base - Extended Studs NEMA
Design NO DESIGN CODE
Orientation HORIZONTAL
Starting Type PSC 1 SPEED
Assembly F1 ONLY KVA
Code C
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size N/A
Rotation SELECTIVE CCW
Opposite End Bearing Size N/A
Weight 13 LB lbs
CE N CSA Y
UL Recognized Construction and Protector
Thermal Protection Automatic Protector (under locked rotor only)
