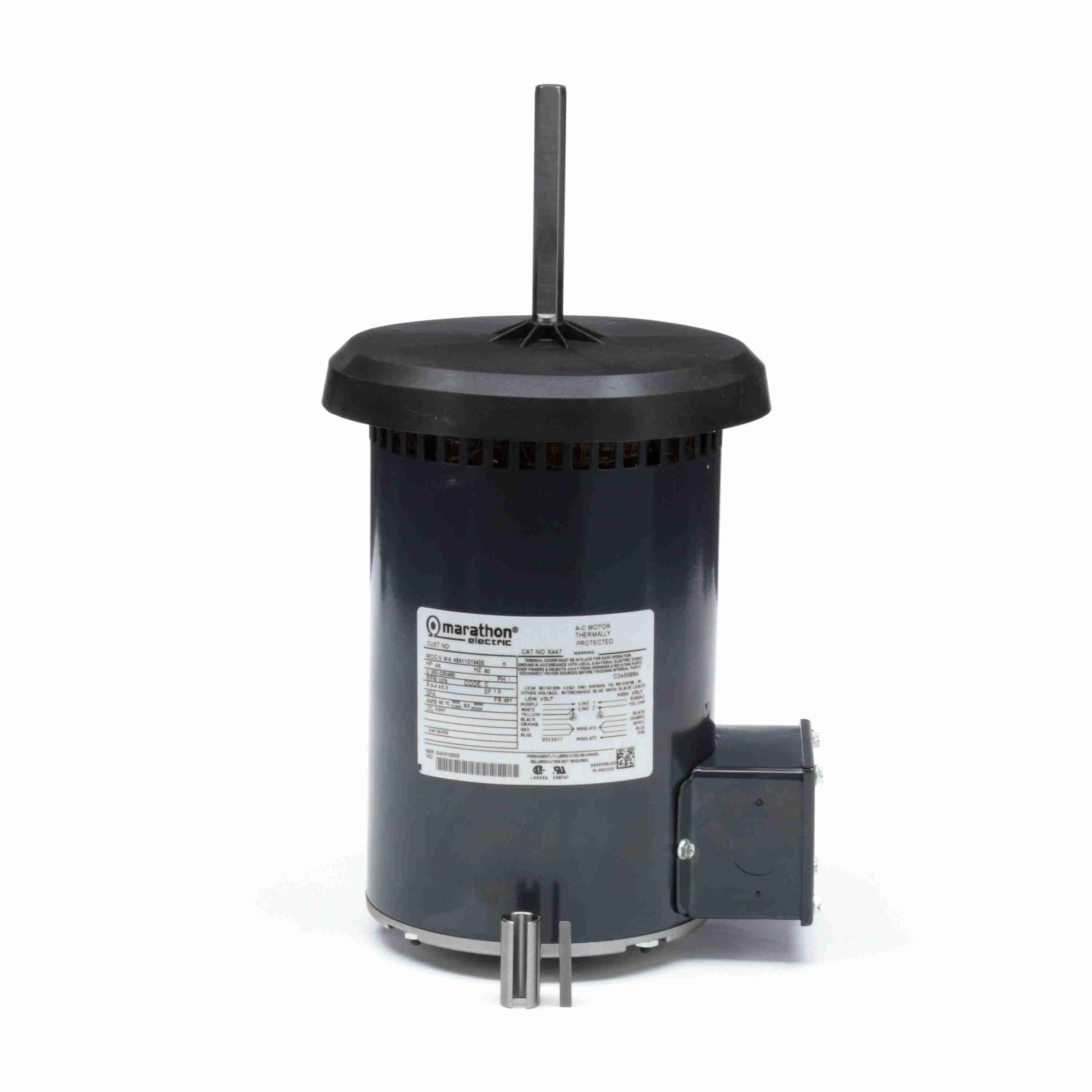

Marathon Electric X405, 1/2 Hp, 1075/1 Rpm, 48Y FR, 208-230/460 Vac, 1 Ph, Condender Fan/Heat Pump, PSC, Open Air Over Motors, 48A11O1744.

X405, 1/2 Hp, 1075/1 Rpm, 48Y FR, 208-230/460 Vac, 1 Ph, Condender Fan/Heat Pump, PSC, Open Air Over Motors, 48A11O1744.

Engineering Data

Output HP : 0.50 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 208-230/460 V
Current : 3.6-3.6/1.8 A
Speed : 1075 rpm
Service Factor : 1
Phase : 1
Efficiency : 65.7 %
Duty : Continous
Insulation Class : B
Design Code : NO DESIGN CODE
KVA Code : F
Frame : 48Y
Enclosure : Open Air
Over Overload Protector : Automatic Lock Rotor Only
Ambient Temperature : 60 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized CSA : Y
CE : N IP
Code : 10
Technical Specifications
Electrical Type : Permanent Split Capacitor
Starting Method : Across The Line
Poles : 6 Rotation : Selective Counterclockwise
Mounting : Three Lug Mount
Motor Orientation : Horizontal Or Up Or Down
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : Single
Special Extension Overall Length : 11.82 in
Frame Length : 6.38 in
Shaft Diameter : 0.500 in
Shaft Extension : 4.06 in
Assembly/Box
Mounting : F1 Only
