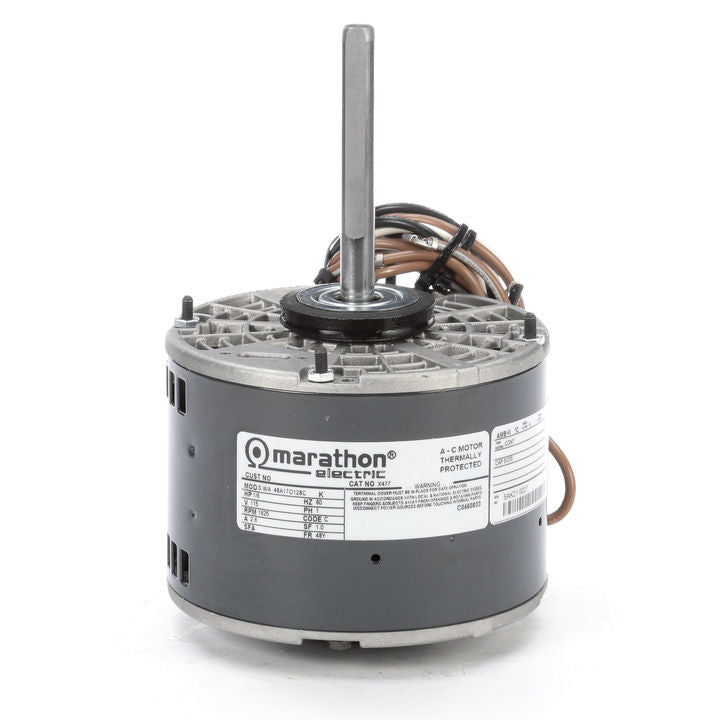

Marathon Electric X477, 1/6 HP, 1625 Rpm, 48Y FR, 115 Vac, 1 PH, Open Air Over, Resilient Ring, Fan Blower-Direct Drive, PSC, 48A17O128

X477, 1/6 HP, 1625 Rpm, 48Y FR, 115 Vac, 1 PH, Open Air Over, Resilient Ring, Fan Blower-Direct Drive, PSC, 48A17O128.

Engineering Data

Output HP:0.17 Hp
Output KW:0.13 kW
Frequency:60 Hz
Voltage:115 V
Current:2.6 A
Speed:1625 rpm
Service Factor:1
Phase:1
Efficiency:52.5 %
Power Factor:80.4
Duty:Continuous
Insulation Class:A
Design Code:NO DESIGN CODE
KVA Code:C
Frame:48Y
Enclosure:Open Air Over
Thermal Protection:Automatic Lock Rotor Only
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:N
CE:NIP Code:10
Technical Specifications
Electrical Type:Permanent Split Capacitor
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Mounting:Resilient Rings
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Single Special Extension
Overall Length:9.00 in
Frame Length:3.50 in
Shaft Diameter:0.500 in
Shaft Extension:4.06 in
