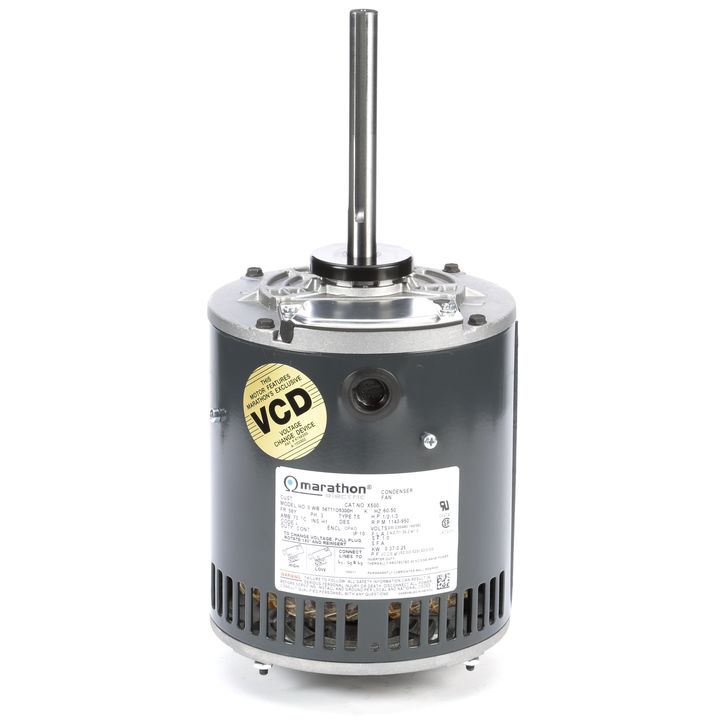

Marathon Electric X501, 3/4 Hp, 1140 Rpm, 56Y FR, 200-230/460 Vac, 3 PH, Belly Band/Resilient Ring, Condenser Fan/Heat Pump, Open Air Over, 56T11O5301

X501, 3/4 Hp, 1140 Rpm, 56Y FR, 200-230/460 Vac, 3 PH, Belly Band/Resilient Ring, Condenser Fan/Heat Pump, Open Air Over, 56T11O5301.

Engineering Data

Output HP : 0.75 HP
Output KW : 0.56 kW
Frequency : 60 Hz
Voltage : 200-230/460 V
Current : 3.2-3.2/1.6 A
Speed : 1140 RPM
Service Factor : 1
Phase : 3
Efficiency : 74 %
Duty : Continuous
Insulation Class : H
Design Code : B
KVA Code : K
Frame : 56Y
Enclosure : Open Air Over
Overload Protector : Automatic Lock Rotor Only
Ambient Temperature : 70 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : N IP Code : 10
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 6
Rotation : Reversible
Mounting : Round Belly Band
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : Single Special Extension
Overall Length : 14.56 in
Frame Length : 7.06 in
Shaft Diameter : 0.625 in
Shaft Extension : 5.06 in
Assembly/Box Mounting : F1 Only
UPC : 722856038418
Weight : 25.00 LB
