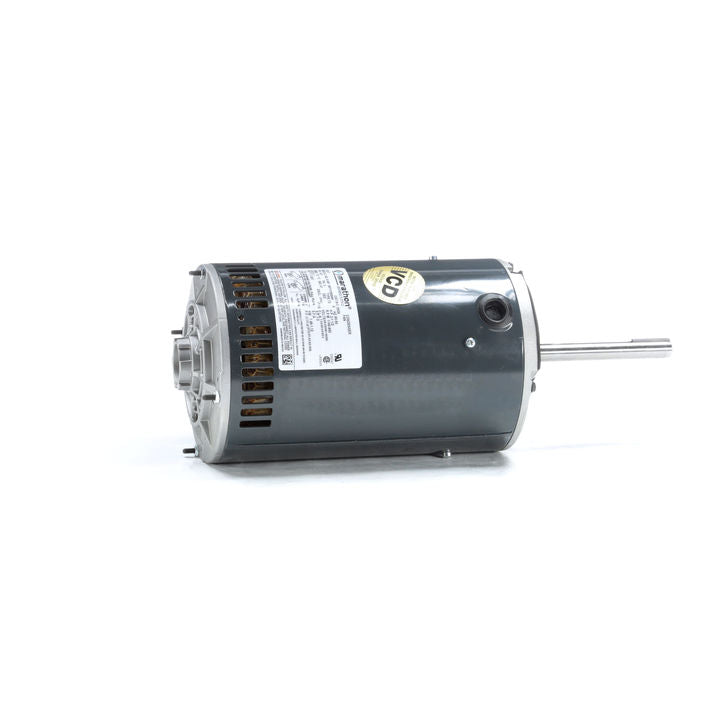

Marathon Electric X509, 2 Hp, 1140 Rpm, 56Y FR, 208-230/460 Vac, 3 PH, Belly Band/Resilient Ring, Condenser Fan/Heat Pump, Open Air Over, 56T11O5304.

X509, 2 Hp, 1140 Rpm, 56Y FR, 208-230/460 Vac, 3 PH, Belly Band/Resilient Ring, Condenser Fan/Heat Pump, Open Air Over, 56T11O5304.

Engineering Data

Output HP : 2 HP
Output KW : 1.5 kW
Frequency : 60 Hz
Voltage : 208-230/460 V
Current : 7.2-6.8/3.4 A
Speed : 1140 RPM
Service Factor : 1
Phase : 3
Efficiency : 81.5 %
Duty : Continuous
Insulation Class : H
Design Code : NO DESIGN CODE
KVA Code : J Frame : 56Y
Enclosure : Open Air Over
Overload Protector : Automatic Lock Rotor Only
Ambient Temperature : 70 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : N IP Code : 10
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 6
Rotation : Reversible
Mounting : Round Belly Band
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : Single Special Extension
Overall Length : 17.06 in
Frame Length : 9.56 in
Shaft Diameter : 0.625 in
Shaft Extension : 5.06 in
Assembly/Box Mounting : F1 Only
UPC : 722856038456
Weight : 46.00 LB
