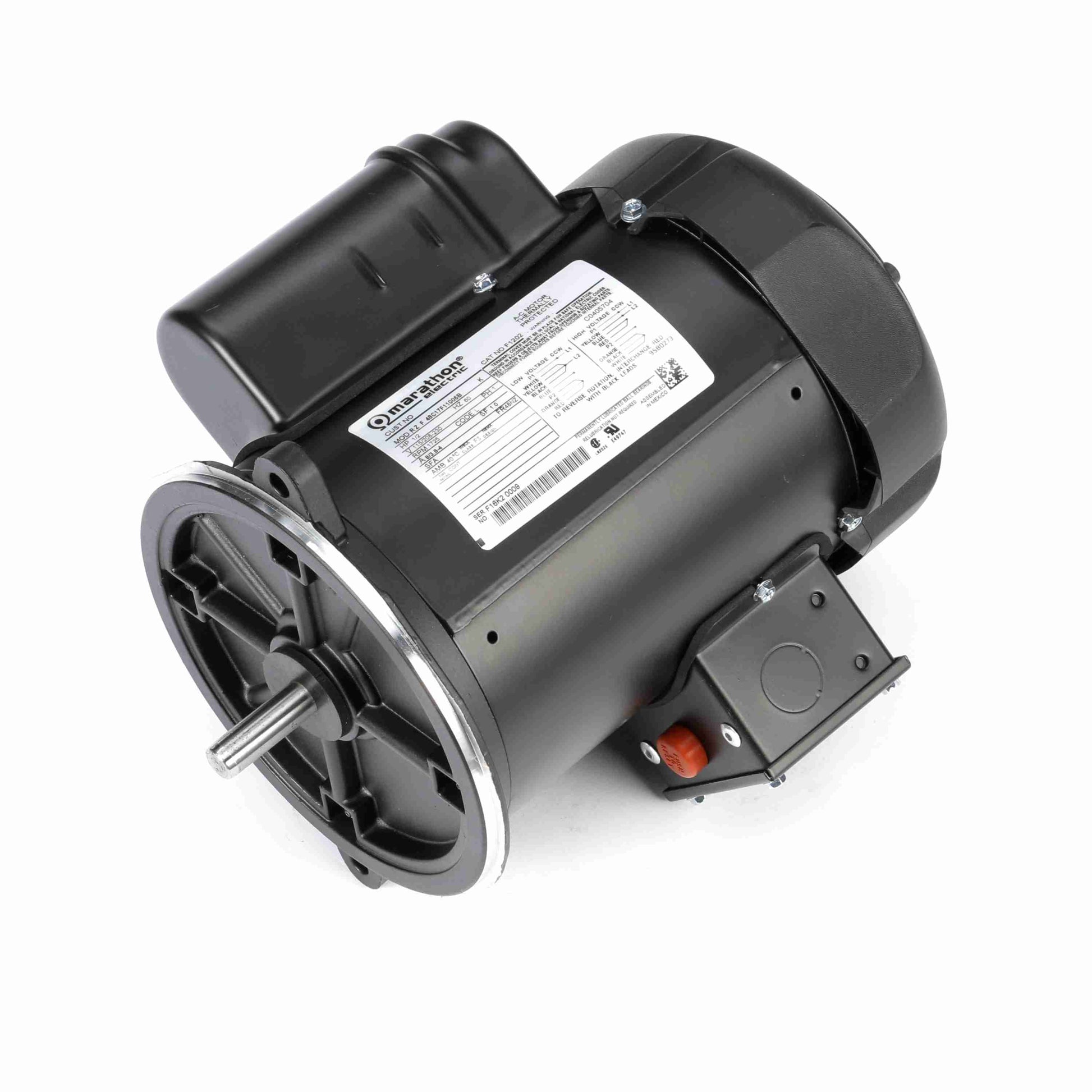

Marathon Electric X902, 1 1/2 Hp, 1800 Rpm, 56HZ FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, Grain Stirring, 56B17F5324.

X902, 1 1/2 Hp, 1800 Rpm, 56HZ FR, 115/208-230 Vac, 1 PH, TEFC, Rigid Base, Grain Stirring, 56B17F5324.

Engineering Data

Output HP : 1.50 HP
Output KW : 1.1 kW
Frequency : 60 Hz
Voltage : 115/208-230 V
Current : 15.2/8.2-7.6 A
Speed : 1725 RPM
Service Factor : 1.15
Phase : 1
Efficiency : 80 %
Duty : Continous
Insulation Class : B
Design Code : NO DESIGN CODE
KVA Code : J
Frame : 56HZ
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : Manual
Ambient Temperature : 40 °C
Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203
UL : Recognized ( Not Protector)
CSA : Y CE : N IP Code : 43
Technical Specifications
Electrical Type : Capacitor Start Capacitor Run
Starting Method : Across The Line
Poles : 4
Rotation : Selective Counterclockwise
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : Single Special Extension
Overall Length : 13.21 in
Frame Length : 8.56 in
Shaft Diameter : 0.875 in
Shaft Extension : 1.25 in
Assembly/Box Mounting : F1 Only
