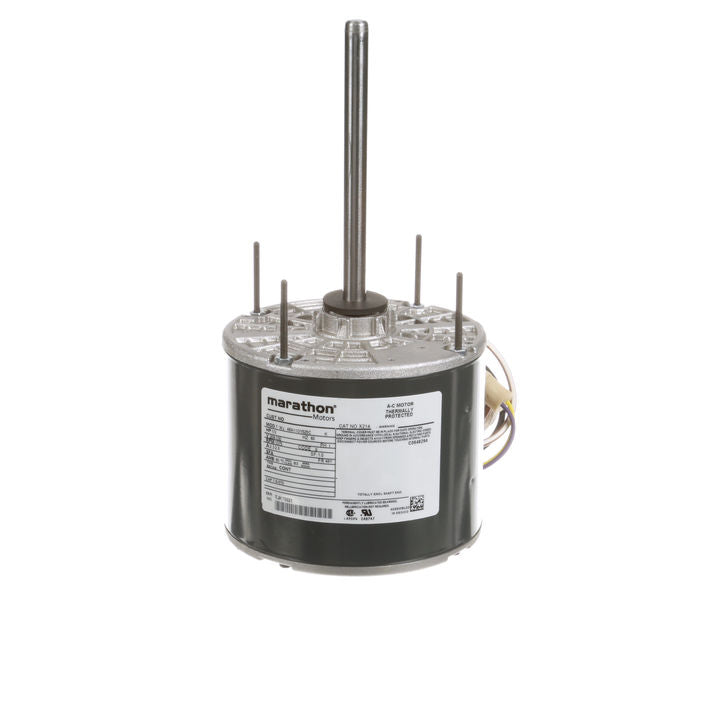

Marathon Electric X910, 1/4 Hp, 1800/1200 Rpm, 48YZ FR, 115 V, 1 PH, TEAO, Direct Drive-Thru Bolt, Farm Duty, Auto Overload, Two Speed, 48S17T366.

X910, 1/4 Hp, 1800/1200 Rpm, 48YZ FR, 115 V, 1 PH, TEAO, Direct Drive-Thru Bolt, Farm Duty, Auto Overload, Two Speed, 48S17T366.

Engineering Data

Output HP :0.25,0.08 HP
Output KW :0.19 kW
Frequency :60 Hz
Voltage :115 V
Current :3.95,2.25 A
Speed :1725,1140 RPM
Service Factor :1
Phase :1
Efficiency :62 %
Duty :Continuous
Insulation Class :B
Design Code :2VT
KVA Code :R
Frame :48
Enclosure :Totally Enclosed Air Over
Overload Protector :Automatic Lock Rotor Only
Ambient Temperature :40 °C
Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :Y
CE :NIP Code :43
Technical Specifications
Electrical Type :Split Phase
Starting Method :Across The Line
Poles :4//6
Rotation :Selective Counterclockwise
Mounting :Round - Extended Studs
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :NEMA 48
Overall Length :11.09 in
Frame Length :6.50 in
Shaft Diameter :0.500 in
Shaft Extension :2.59 in
Assembly/Box Mounting :F1 Only
UPC :722856028563
