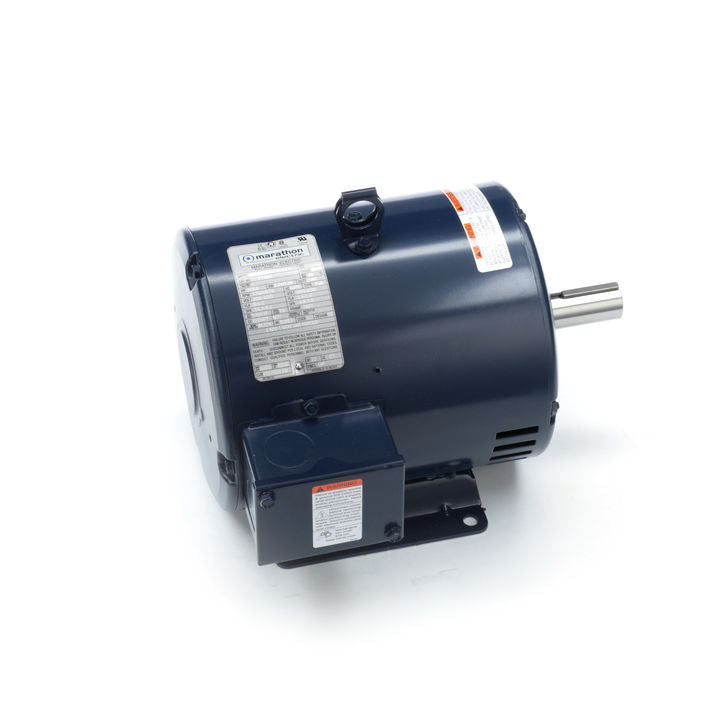

Marathon Electric Y1484, 3/.75 Hp, 1800/900 Rpm, 182T FR, 200-230 V, 3 PH, DP, Rigid Base, General Purpose Motor, 182TTDW7412.

Y1484, 3/.75 Hp, 1800/900 Rpm, 182T FR, 200-230 V, 3 PH, DP, Rigid Base, General Purpose Motor, 182TTDW7412.

Engineering Data

Output HP:3,0.75 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:200-230 V
Current:9-8.2,3.5-3.6 A
Speed:1760,875 rpm
Service Factor:1.15
Phase:3
Efficiency:84.5 %
Power Factor:80.9
Duty:Continuous
Insulation Class:F
Design Code:1VT
KVA Code:L
Frame:182T
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6206
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:4/8
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:13.19 in
Frame Length:9.00 in
Shaft Diameter:1.125 in
Shaft Extension:2.81 in
Assembly/Box Mounting:F1 Only
