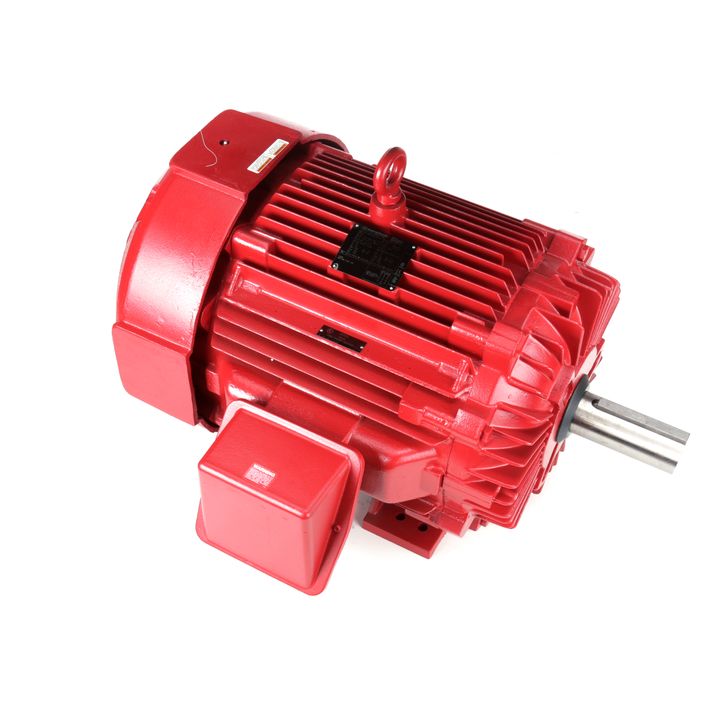

Marathon Electric Y1609, 15 Hp, 1800 Rpm, 254T FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 254TTFNA14336.

Y1609, 15 Hp, 1800 Rpm, 254T FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 254TTFNA14336.

Engineering Data

Output HP:15 Hp
Output KW:11.2 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:39.0/19.5 A
Speed:1770 rpm
Service Factor:1.15
Phase:3
Efficiency:91 %
Power Factor:79
Duty:Continuous
nsulation Class:F
Design Code:B
KVA Code:G
Frame:254T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6210
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Part Wdg Start Low Volt Only & Wye Start Delta Run
Poles:4
Rotation:Reversible
Resistance Main:.69 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:23.65 in
Frame Length:10.51 in
Shaft Diameter:1.625 in
Shaft Extension:4.20 in
Assembly/Box Mounting:F1/F2 CAPABLE
