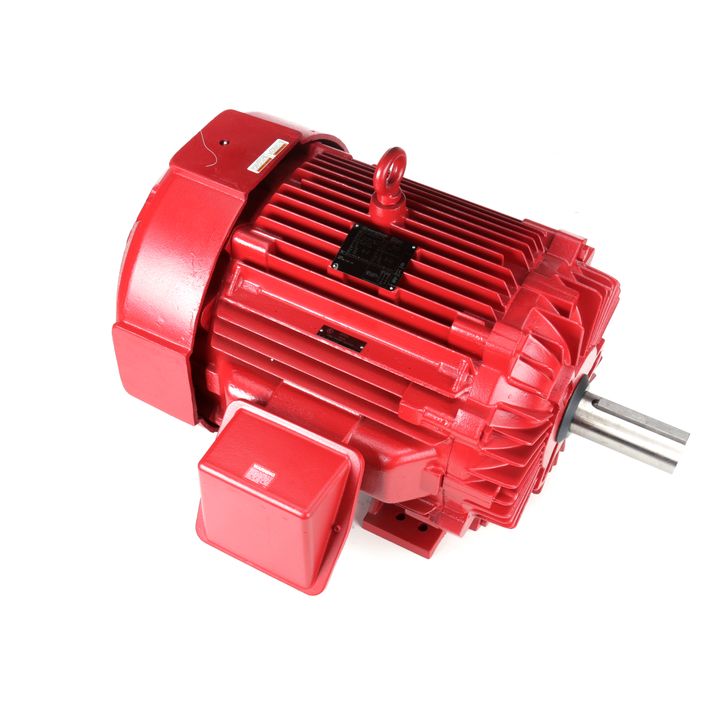

Marathon Electric Y1613, 25 Hp, 1800 Rpm, 284T FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 284TTFPA14055.

Y1613, 25 Hp, 1800 Rpm, 284T FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 284TTFPA14055.

Engineering Data

Output HP:25 Hp
Output KW:18.7 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:61.0/30.5 A
Speed:1775 rpm
Service Factor:1.15
Phase:3
Efficiency:92.4 %
Power Factor:83
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:284T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6311
Opp Drive End Bearing Size:6210
UL:Recognized
CSA:YCE:Y
IP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Part Wdg Start Low Volt Only & Wye Start Delta Run
Poles:4
Rotation:Reversible
Resistance Main:.35 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:26.39 in
Frame Length:12.76 in
Shaft Diameter:1.875 in
Shaft Extension:4.87 in
Assembly/Box Mounting:F1/F2 CAPABLE
