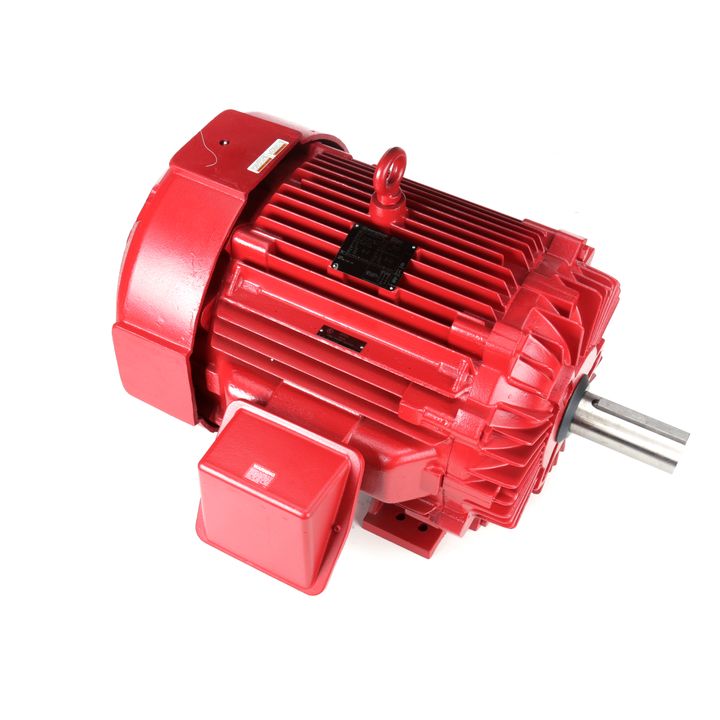

Marathon Electric Y1614, 30 Hp, 3600 Rpm, 286TS FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 286TSTFPA14006.

Y1614, 30 Hp, 3600 Rpm, 286TS FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 286TSTFPA14006.

Engineering Data

Output HP:30 Hp
Output KW:22.4 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:70.0/35.0 A
Speed:3518 rpm
Service Factor:1.15
Phase:3
Efficiency:91 %
Power Factor:88.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:F
Frame:286TS
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6311
Opp Drive End Bearing Size:6210
UL:Listed
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Part Wdg Start Low Volt Only & Wye Start Delta Run
Poles:2
Rotation:Reversible
Resistance Main:.28 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:TS
Overall Length:26.43 in
Frame Length:14.25 in
Shaft Diameter:1.625 in
Shaft Extension:3.45 in
Assembly/Box Mounting:F1/F2 CAPABLE
