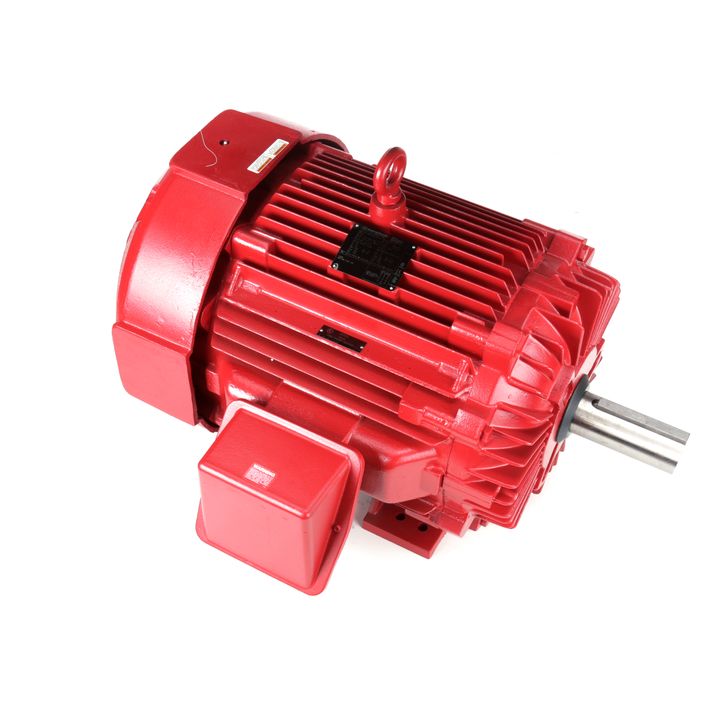

Marathon Electric Y1618, 40 Hp, 1800 Rpm, 324T FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 324TTFPA14071.

Y1618, 40 Hp, 1800 Rpm, 324T FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 324TTFPA14071.

Engineering Data

Nameplate Specifications

Output HP : 40 Hp
Output KW : 30.0 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 100.0/50.0 A
Speed : 1762 rpm
Service Factor : 1.15
Phase : 3
Efficiency : 93 %
Duty : Continuous Insulation Class : F
Design Code : B
KVA Code : G
Frame : 324T
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6312
Opp Drive End Bearing Size : 6311
UL : Listed
CSA : Y
CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Part Wdg Start Low Volt Only & Wye Start Delta Run
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : T
Overall Length : 28.97 in
Frame Length : 14.75 in
Shaft Diameter : 2.125 in
Shaft Extension : 5.44 in
Assembly/Box Mounting : F1/F2 CAPABLE
UPC : 722856132628
Weight : 583.00 LB
