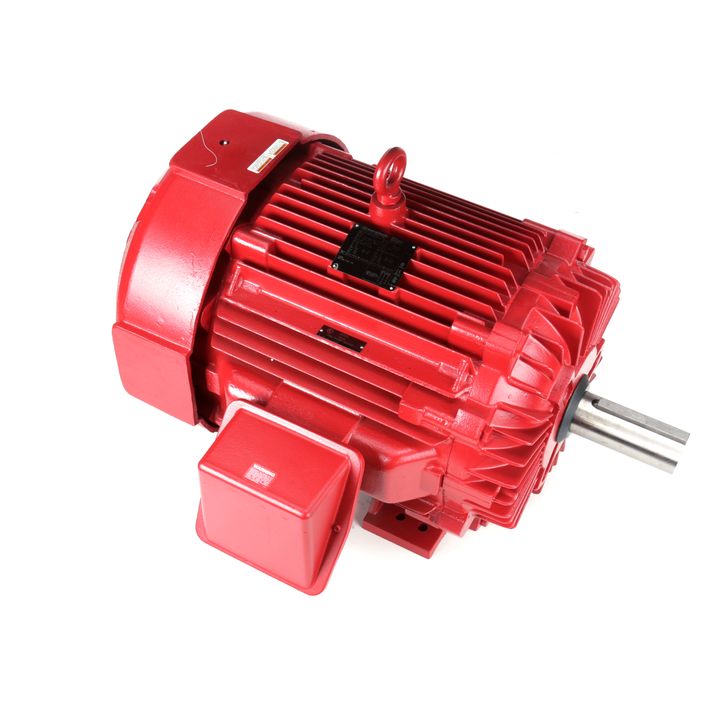

Marathon Electric Y1622, 60 Hp, 3600 Rpm, 364TS FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 364TSTFS14009.

Y1622, 60 Hp, 3600 Rpm, 364TS FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 364TSTFS14009.

Engineering Data

Output HP:60 Hp
Output KW:45.0 kW
Frequency:60 Hz
Voltage:230/460 V
Current:138.0/69.0 A
Speed:3555 rpm
Service Factor:1.15
Phase:3
Efficiency:93 %
Power Factor:88
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:F
Frame:364TS
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6316
Opp Drive End Bearing Size:6313
UL:Listed
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Wye Start Delta Run
Poles:2
Rotation:Reversible
Resistance Main:.099 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:TS
Overall Length:29.38 in
Frame Length:13.50 in
Shaft Diameter:1.875 in
Shaft Extension:4.00 in
Assembly/Box Mounting:F1/F2 CAPABLE
