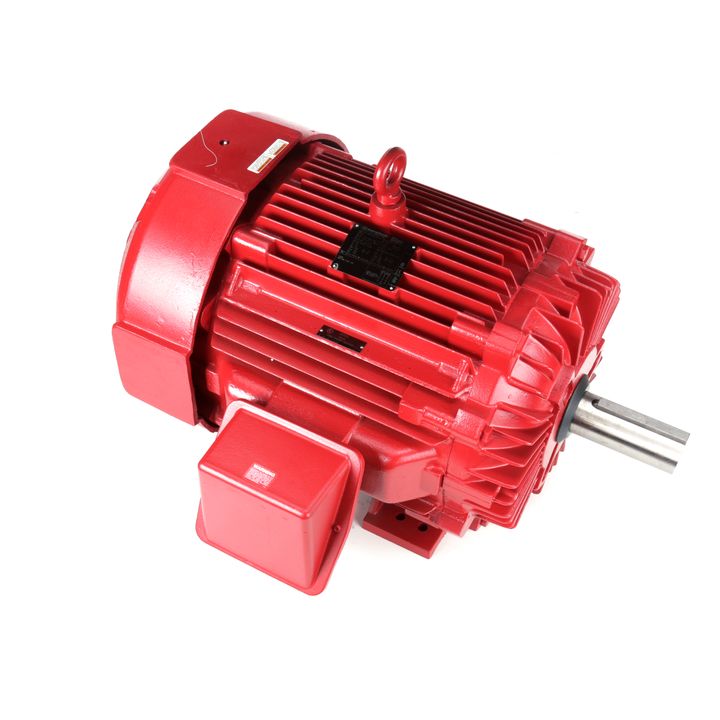

Marathon Electric Y1625, 75 Hp, 3600 Rpm, 365TS FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 365TSTFS14009.

Y1625, 75 Hp, 3600 Rpm, 365TS FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 365TSTFS14009.

Engineering Data

Output HP:75 Hp
Output KW:56.0 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:172.0/86.0 A
Speed:3558 rpm
Service Factor:1.15
Phase:3
Efficiency:93 %
Power Factor:87.5
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:365TS
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6312
Opp Drive End Bearing Size:6312
UL:No
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Part Wdg Start Low Volt Only & Wye Start Delta Run
Poles:2
Rotation:Reversible
Resistance Main:.072 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:TS
Overall Length:30.38 in
Frame Length:14.50 in
Shaft Diameter:1.875 in
Shaft Extension:3.99 in
Assembly/Box Mounting:F1/F2 Capable
