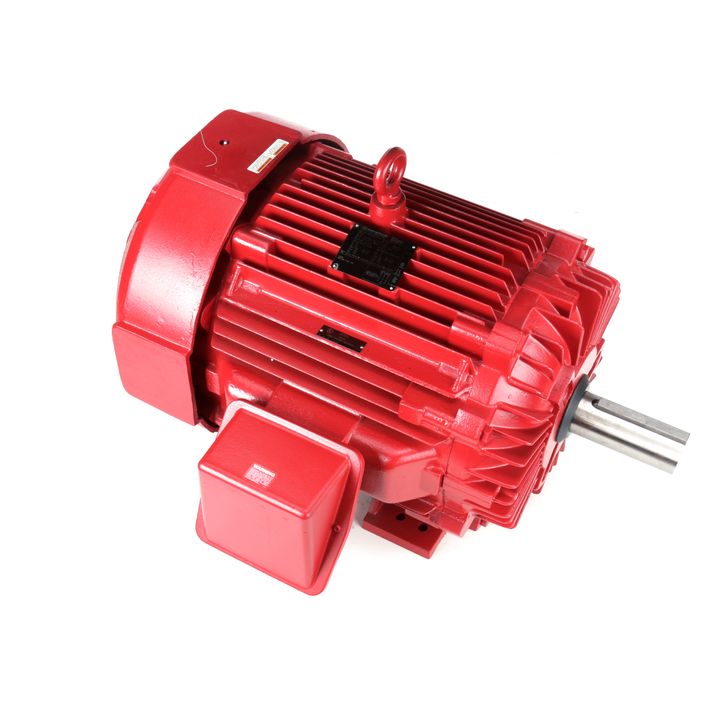

Marathon Electric Y1627, 75 Hp, 1800 Rpm, 365T FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 256TTFNA14022.

Y1627, 75 Hp, 1800 Rpm, 365T FR, 230/460 Vac, 3 PH, TEFC, Fire Pump, Rigid Base, EPACT, 256TTFNA14022.

Engineering Data

Output HP:75 Hp
Output KW:56.0 kW
Frequency:60/50 Hz
Voltage:230/460 V
Current:176.0/88.0 A
Speed:1778 rpm
Service Factor:1.15
Phase:3
Efficiency:94.1 %
Power Factor:85
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:G
Frame:365T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6314
Opp Drive End Bearing Size:6312
UL:No
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Part Wdg Start Low Volt Only & Wye Start Delta Run
Poles:4
Rotation:Reversible
Resistance Main:.076 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:32.52 in
Frame Length:14.50 in
Shaft Diameter:2.375 in
Shaft Extension:6.13 in
Assembly/Box Mounting:F1/F2 Capable
