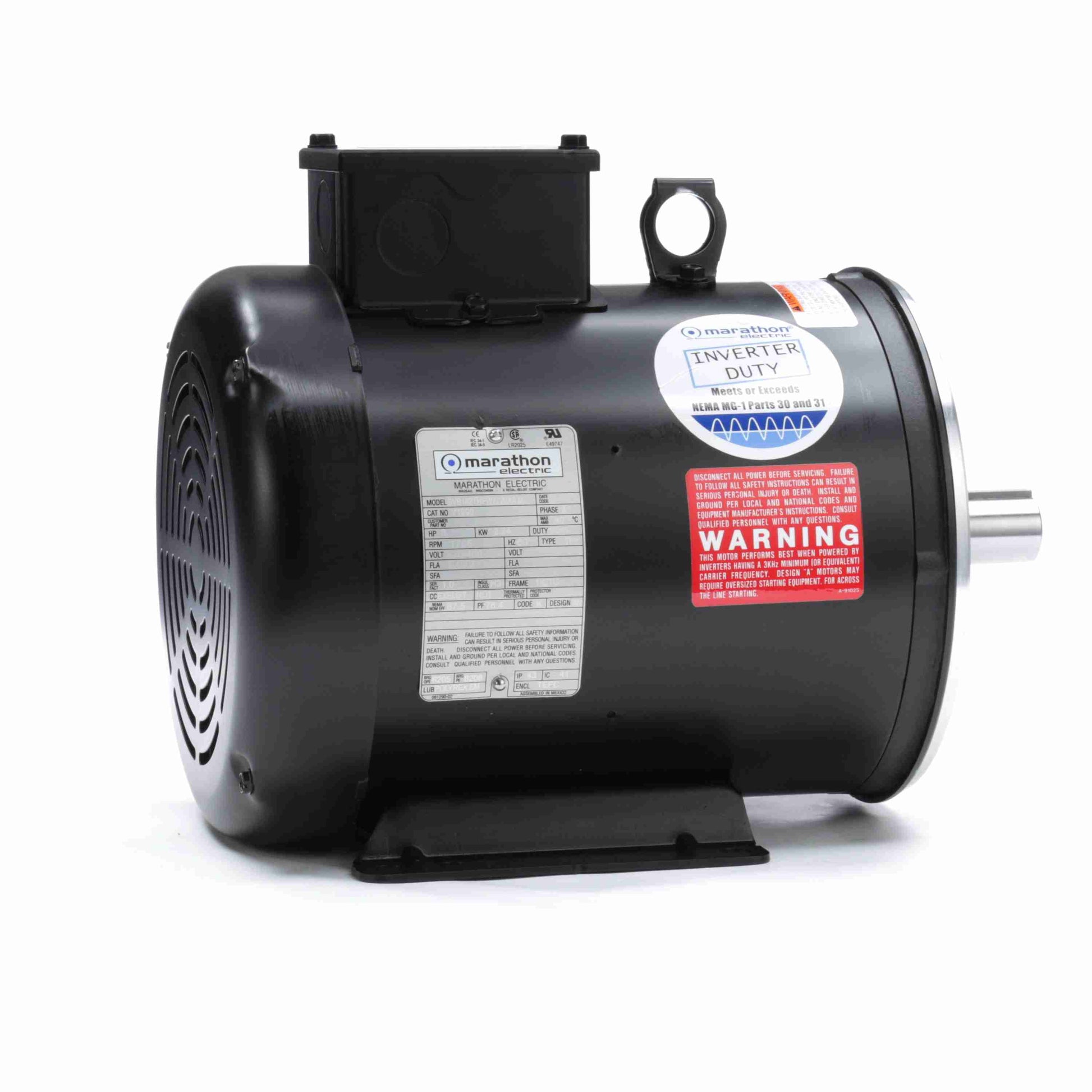

Marathon Electric Y270A, 3 Hp, 1800 Rpm, 182TC FR, 575 Vac, 3 PH, Totally Enclosed, C-Face Footed, Inverter Duty, MicroMAX, 182THFW7730.

Marathon Electric Y270A, 3 Hp, 1800 Rpm, 182TC FR, 575 Vac, 3 PH, Totally Enclosed, C-Face Footed, Inverter Duty, MicroMAX, 182THFW7730.

$1,944.00
$1,944.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,944.00 $1,846.80
Sale

Y270A, 3 Hp, 1800 Rpm, 182TC FR, 575 Vac, 3 PH, Totally Enclosed, C-Face Footed, Inverter Duty, MicroMAX, 182THFW7730.

Engineering Data

Output HP : 3 HP
Output KW : 2.2 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 3.1 A
Speed : 1768 RPM
Service Factor : 1
Phase : 3
Efficiency : 89.5 %
Duty : Continuous
Insulation Class : H
Design Code : INV
KVA Code : K
Frame : 182TC
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Inverter Duty
Starting Method : Inverter Only
Poles : 4
Rotation : Reversible
Mounting : Bolt-on Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Extension : 2.88 in
Assembly/Box Mounting : F3
