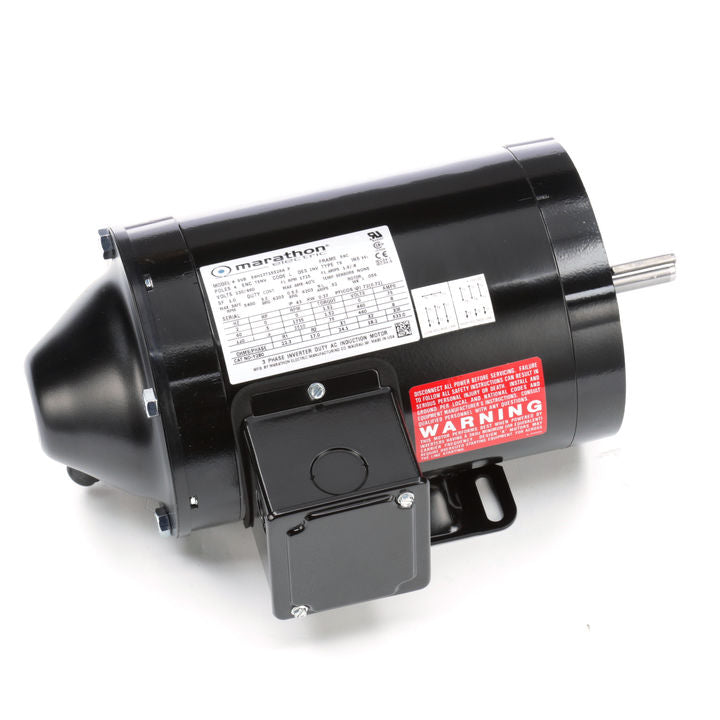

Marathon Electric Y285, 2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, 3 PH, 1024 PPR, Totally Enclosed, C-Face Footed, Inverter Duty MAX+ w/ Encoder, 145THTN17034.

Y285, 2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, 3 PH, 1024 PPR, Totally Enclosed, C-Face Footed, Inverter Duty MAX+ w/ Encoder, 145THTN17034.

Engineering Data

Output HP : 2 HP
Output KW : 1.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 6.0/3.0 A
Speed : 1750 RPM
Service Factor : 1
Phase : 3
Efficiency : 85.5 %
Duty : Continous
Insulation Class : H
Design Code : INV
KVA Code : M
Frame : 145TC
Enclosure : Totally Enclosed Non Ventilated
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Inverter Duty
Starting Method : Inverter Only
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Cast Iron
Shaft Type : T
Overall Length : 14.93 in
Frame Length : 6.25 in
Shaft Diameter : 0.875 in
Shaft Extension : 2.12 in
Assembly/Box Mounting : F1/F2 Capable
