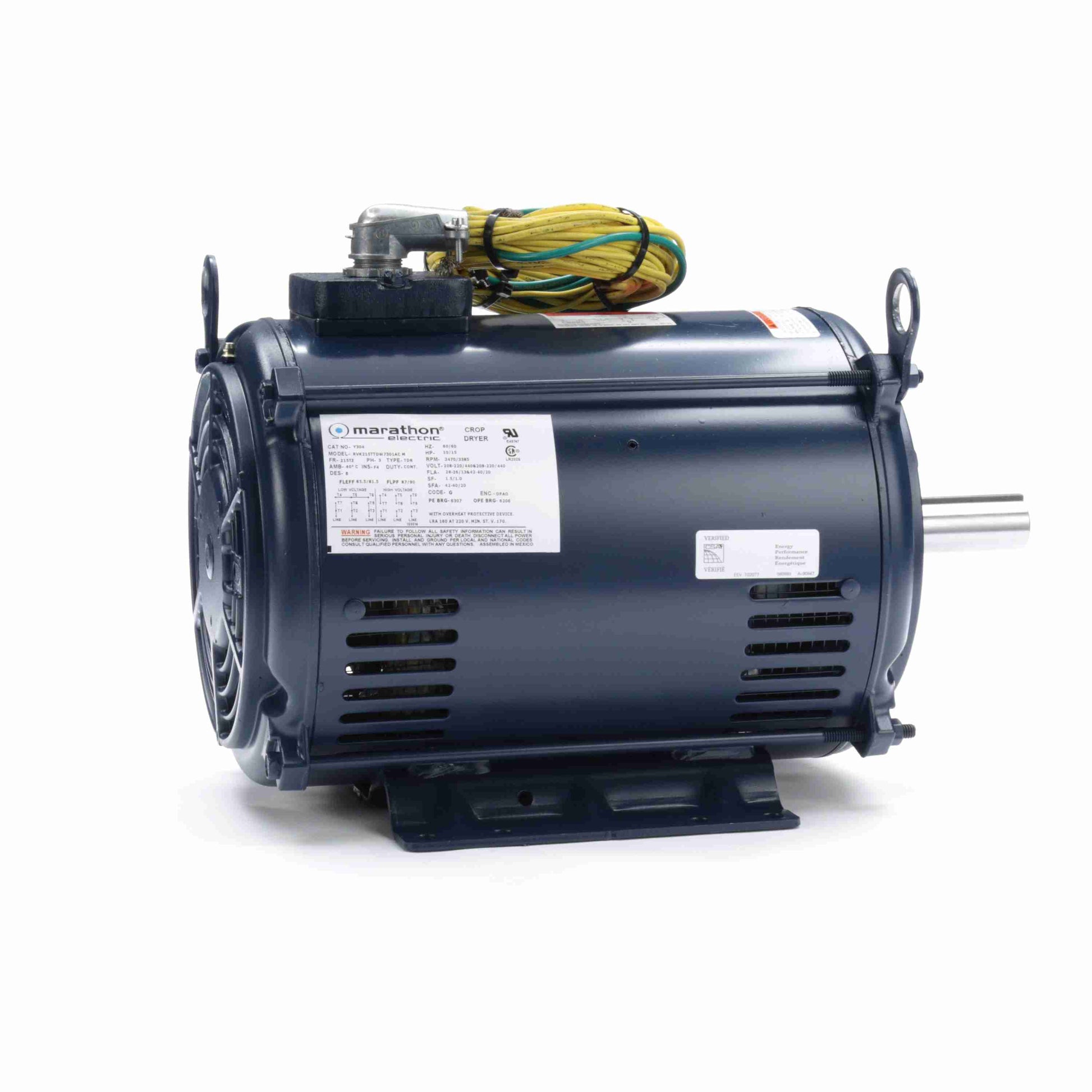

Marathon Electric Y302A, 5-7 Hp, 3600 Rpm, 184TZ FR, 208-220/440 Vac, 3 PH, Crop Dryer, Open/Air Over, 184TTDW7611.

Y302A, 5-7 Hp, 3600 Rpm, 184TZ FR, 208-220/440 Vac, 3 PH, Crop Dryer, Open/Air Over, 184TTDW7611.

Engineering Data

Output HP : 5 HP
Output KW : 3.7 kW
Frequency : 60 Hz
Voltage : 208-220/440 V
Current : 13.8-13.2/6.6 A
Speed : 3450 RPM
Service Factor : 1.4
Phase : 3
Efficiency : 82.5 %
Duty : Continous
Insulation Class : F
Design Code : NO DESIGN CODE
KVA Code : G
Frame : 184TZ
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : Y CE : N IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 2
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : Single Special Extension
Overall Length : 13.16 in
Frame Length : 9.00 in
Shaft Diameter : 1.125 in
Shaft Extension : 2.78 in
Assembly/Box Mounting : F3
