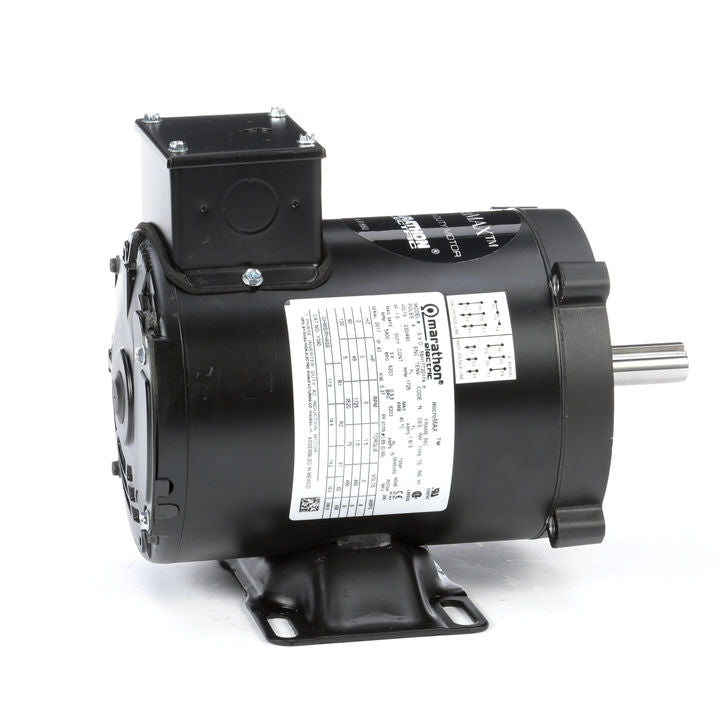

Marathon Electric Y360, 1/2 Hp, 1800 Rpm, 56C FR, 230/460 Vac, 3 PH, TENV, C-Face with Base, Inverter Duty, microMAX, 56H17T2017

Y360, 1/2 Hp, 1800 Rpm, 56C FR, 230/460 Vac, 3 PH, TENV, C-Face with Base, Inverter Duty, microMAX, 56H17T2017

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60 Hz
Voltage:230/460 V
Current:1.8/0.90 A
Speed:1725 rpm
Service Factor:1
Phase:3
Efficiency:74 %
Power Factor:69
Duty:Continuous
Insulation Class:H
Design Code:INV
KVA Code:N
Frame:56C
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Duty
Starting Method:Inverter Only
Poles:4
Rotation:Reversible
Resistance Main:29.2 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:9.81 in
Frame Length:6.25 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
Assembly/Box Mounting:F3
