Industrial Motors

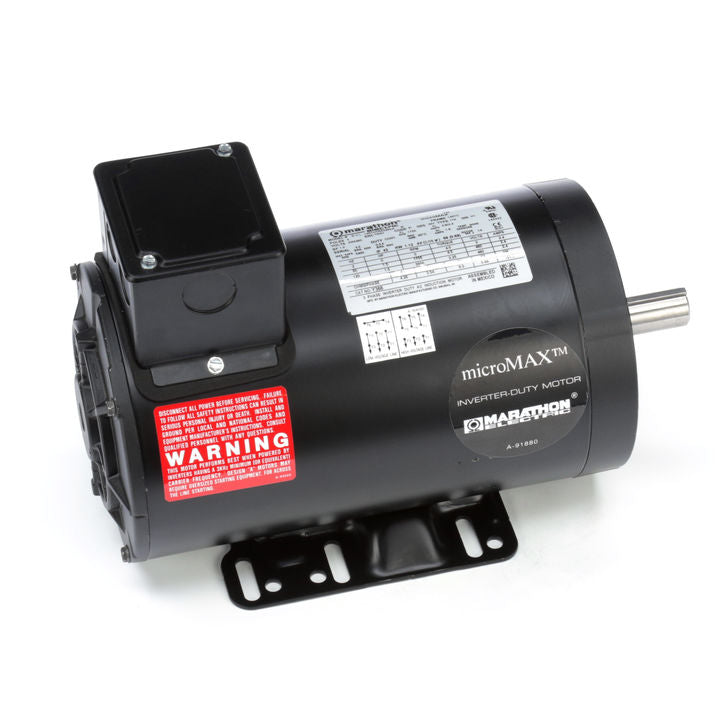

Marathon Electric Y366, 1 1/2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, 3 PH, TENV, C-Face with Base, Inverter Duty, microMAX, 145THTR5329

Marathon Electric Y366, 1 1/2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, 3 PH, TENV, C-Face with Base, Inverter Duty, microMAX, 145THTR5329

$1,570.00
$1,570.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,570.00 $1,491.50
Sale

Y366, 1 1/2 Hp, 1800 Rpm, 145TC FR, 230/460 Vac, 3 PH, TENV, C-Face with Base, Inverter Duty, microMAX, 145THTR5329

Engineering Data

60 Hertz
HP 1 1/2
Voltage 230/460
kW 1.12
FL Amps 4.8/2.4
RPM 1800
FL Eff 85.5 % SF 1.0

Phase 3
Insulation Class H
Frame 145TC
Duty CONTINUOUS
Enclosure TENV
Ambient 40
Mounting C-Face - Removable Base NEMA
Design A
Orientation HORIZONTAL
Starting Type INVERTER ONLY
Assembly F3 KVA Code R
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 205
Opposite End Bearing Size 203
Weight 48.6 LB lbs
Inverter Speed Range CONSTANT 1000:1
CE Y CSA Y
UL Recognized Construction
Thermal Protection NOT

View full details

Attachments
