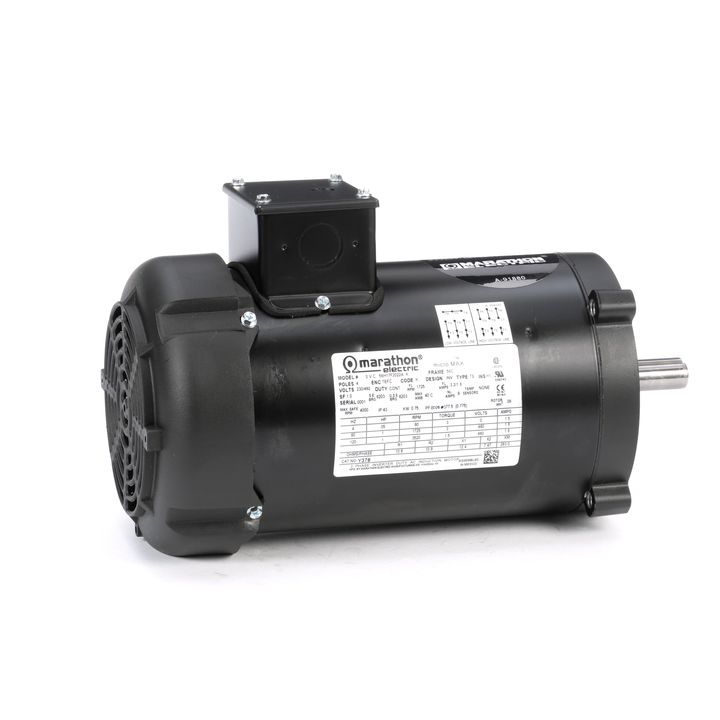

Marathon Electric Y376, 3/4 Hp, 1800 Rpm, 230/460 Vac, 3 PH, Totally Enclosed, C-Face Footless, Inverter Duty, MicroMAX, 56H17F2018

Y376, 3/4 Hp, 1800 Rpm, 230/460 Vac, 3 PH, Totally Enclosed, C-Face Footless, Inverter Duty, MicroMAX, 56H17F2018.

Engineering Data

Output HP:0.75 Hp
Output KW:0.56 kW
Frequency:60 Hz
Voltage:230/460 V
Current:2.8/1.4 A
Speed:1725 rpm
Service Factor:1
Phase:3
Efficiency:75.5 %
Power Factor:70.5
Duty:Continuous
Insulation Class:H
Design Code:INV
KVA Code:L
Frame:56C
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Duty
Starting Method:Inverter Only
Poles:4
Rotation:Reversible
Resistance Main:23 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:11.19 in
Frame Length:6.25 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
Assembly/Box Mounting:F3
