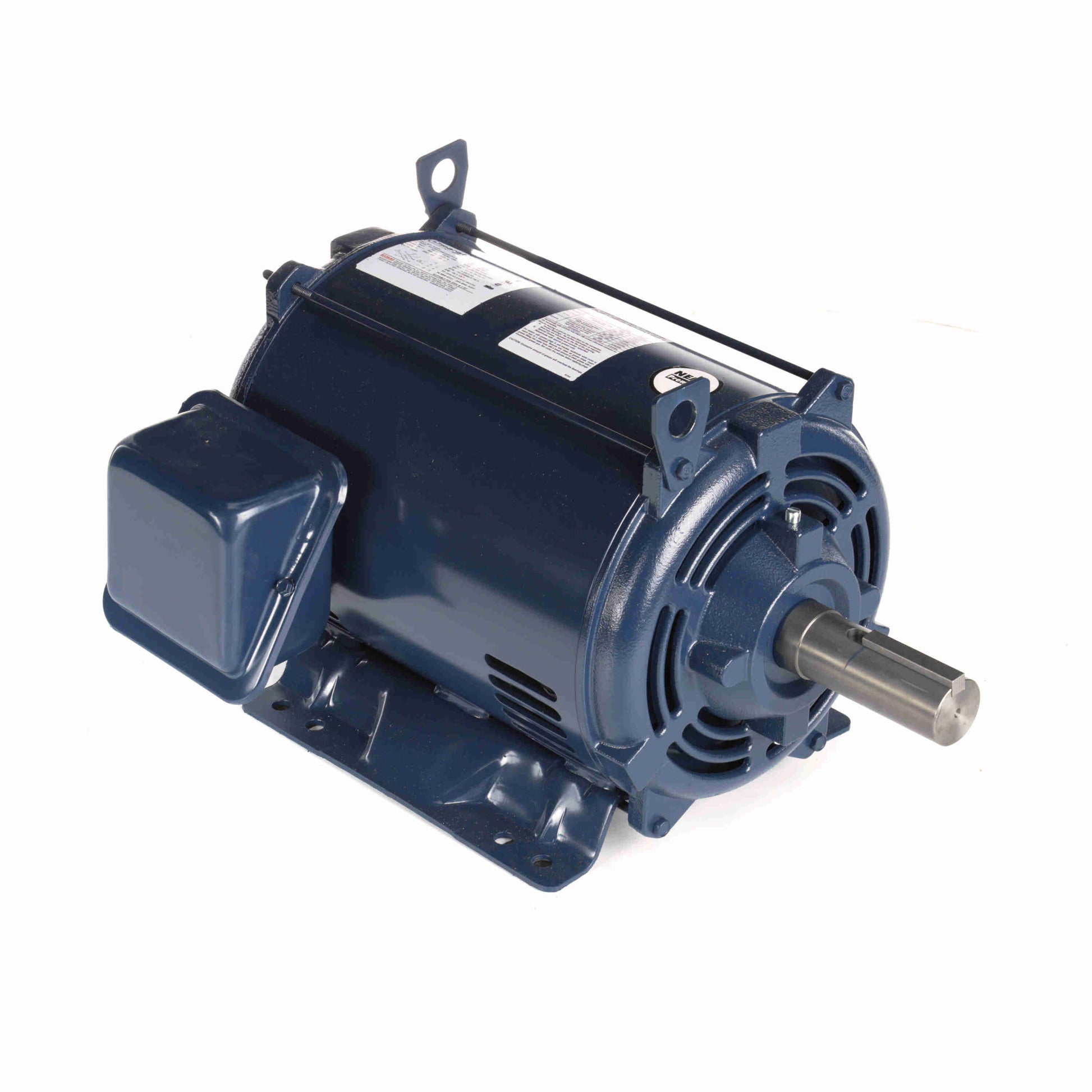

Marathon Electric Y455, 5/2.22 Hp, 1800/1200 Rpm, 215T FR, 200-230 Vac, 3 PH, Two Speed, Two Winding, Variable Torque, Dripproof, Rigid Base, High Speed, 215TTDW7204.

Y455, 5/2.22 Hp, 1800/1200 Rpm, 215T FR, 200-230 Vac, 3 PH, Two Speed, Two Winding, Variable Torque, Dripproof, Rigid Base, High Speed, 215TTDW7204.

Engineering Data

Output HP : 5,2.22 HP
Output KW : 3.7 kW
Frequency : 60 Hz
Voltage : 200-230 V
Current : 14.5-14,7.8-7.4 A
Speed : 1775,1175 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 85.5 %
Duty : Continuous
Insulation Class : F
Design Code : 2VT
KVA Code : N
Frame : 215T
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6307
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4//6
Rotation : Fixed Clockwise
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 17.30 in
Frame Length : 11.15 in
Shaft Diameter : 1.375 in
Shaft Extension : 3.47 in
Assembly/Box Mounting : F1/F2 CAPABLE
