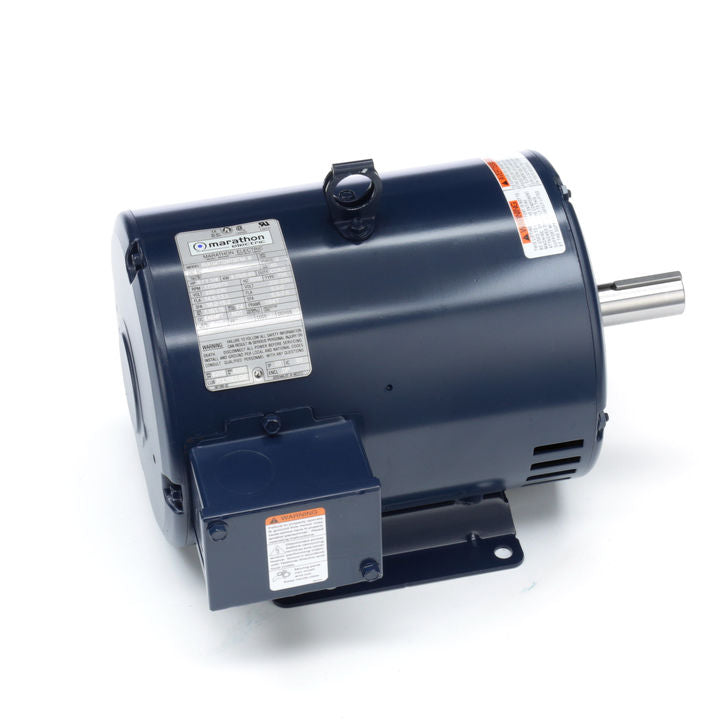

Marathon Electric Y486A, 5/1.25 Hp, 1800/900 Rpm, 184T FR, 200-230 Vac, 3 PH, Two Speed, One Winding, Variable Torque, Dripproof, Rigid Base, High Speed, 184TTDR7287.

Y486A, 5/1.25 Hp, 1800/900 Rpm, 184T FR, 200-230 Vac, 3 PH, Two Speed, One Winding, Variable Torque, Dripproof, Rigid Base, High Speed, 184TTDR7287.

Engineering Data

Output HP : 5,1.25 HP
Output KW : 3.7 kW
Frequency : 60 Hz
Voltage : 200-230 V
Current : 14.5-13.8,5.6-6 A
Speed : 1755,875 RPM
Service Factor : 1.15
Phase : 3
Efficiency : 85.5 %
Duty : Continuous
Insulation Class : F
Design Code : 1VT
KVA Code : J
Frame : 184T
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : Squirrel Cage Induction Run
Starting Method : Across The Line
Poles : 4/8
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 14.19 in
Frame Length : 10.00 in
Shaft Diameter : 1.125 in
Shaft Extension : 2.81 in
Assembly/Box Mounting : F1 Only
