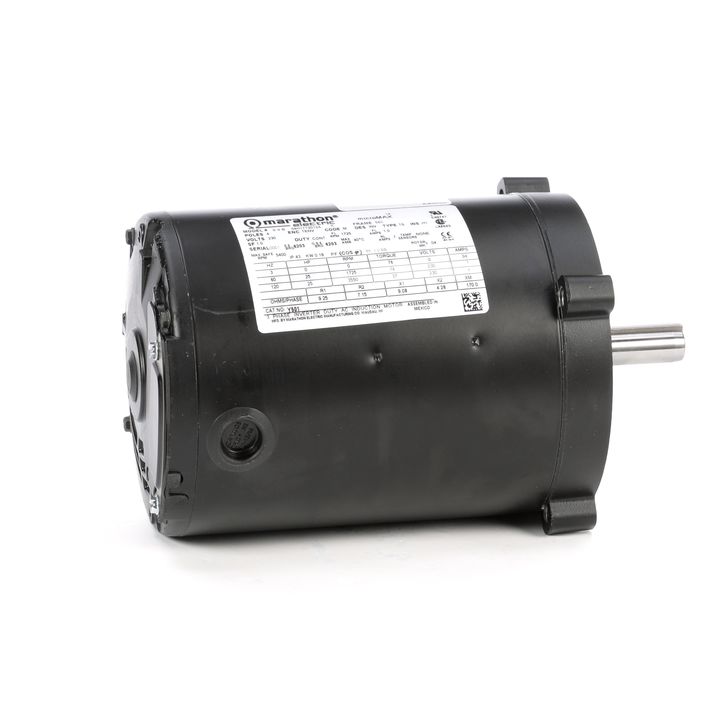

Marathon Electric Y503, 1/3 Hp, 1800 Rpm, 56C FR, 230 Vac, 3 PH, Totally Enclosed, C-Face Footless, Inverter Duty, MicroMAX, 56H17T2014.

**This motor is a BTO motor with a 100 pc. min order**
Y503, 1/3 Hp, 1800 Rpm, 56C FR, 230 Vac, 3 PH, Totally Enclosed, C-Face Footless, Inverter Duty, MicroMAX, 56H17T2014.

Engineering Data

Output HP : 0.33 HP
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 230 V
Current : 1.2 A
Speed : 1725 RPM
Service Factor : 1
Phase : 3
Efficiency : 74 %
Duty : Continuous
Insulation Class : H
Design Code : INV
KVA Code : M
Frame : 56C
Enclosure : Totally Enclosed Non Ventilated
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Inverter Duty
Starting Method : Inverter Only
Poles : 4
Rotation : Reversible
Mounting : Round
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : NEMA 56
Overall Length : 9.91 in
Frame Length : 6.25 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.06 in
Assembly/Box Mounting : F1 Only
UPC : 722856024404
Weight : 17.00 LB
