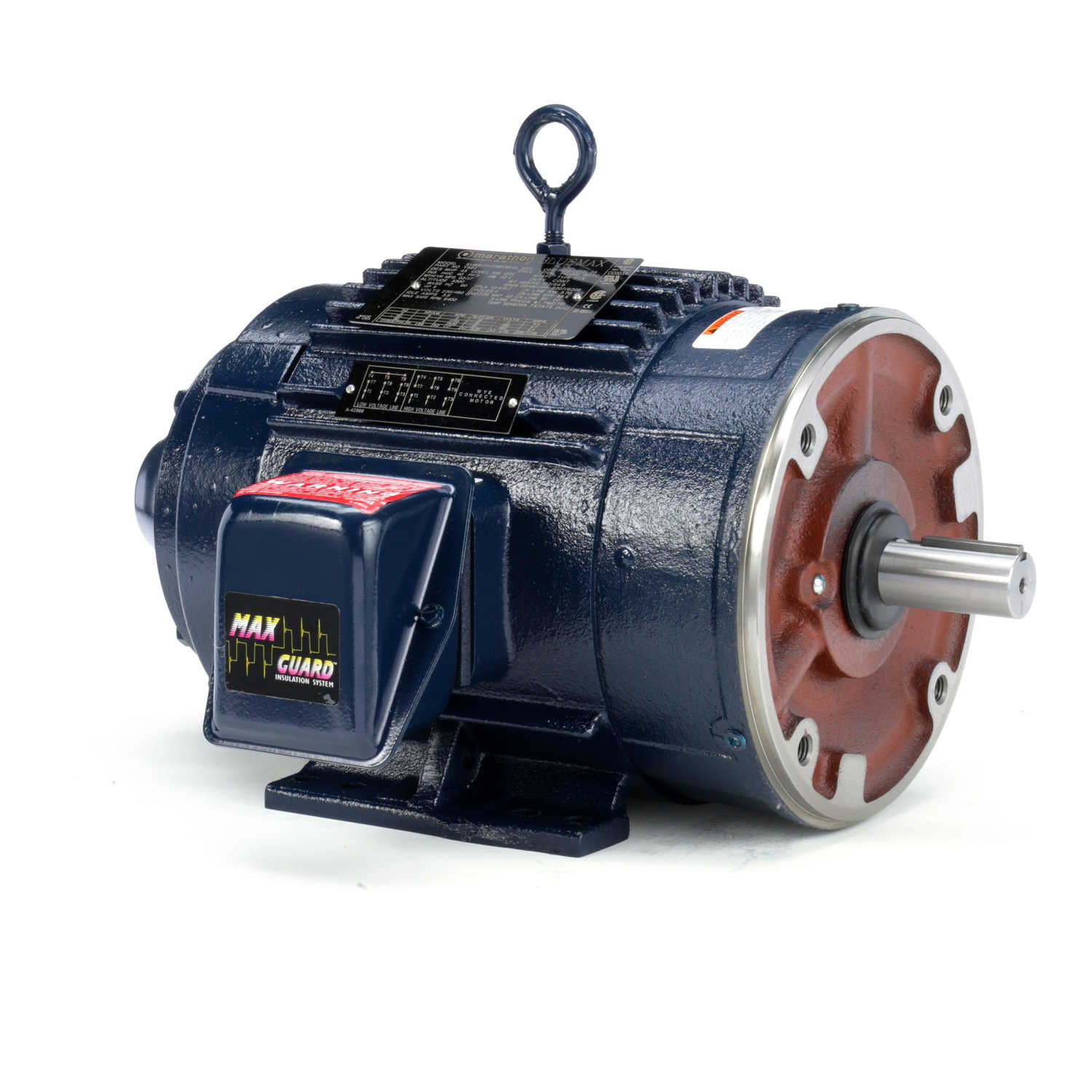

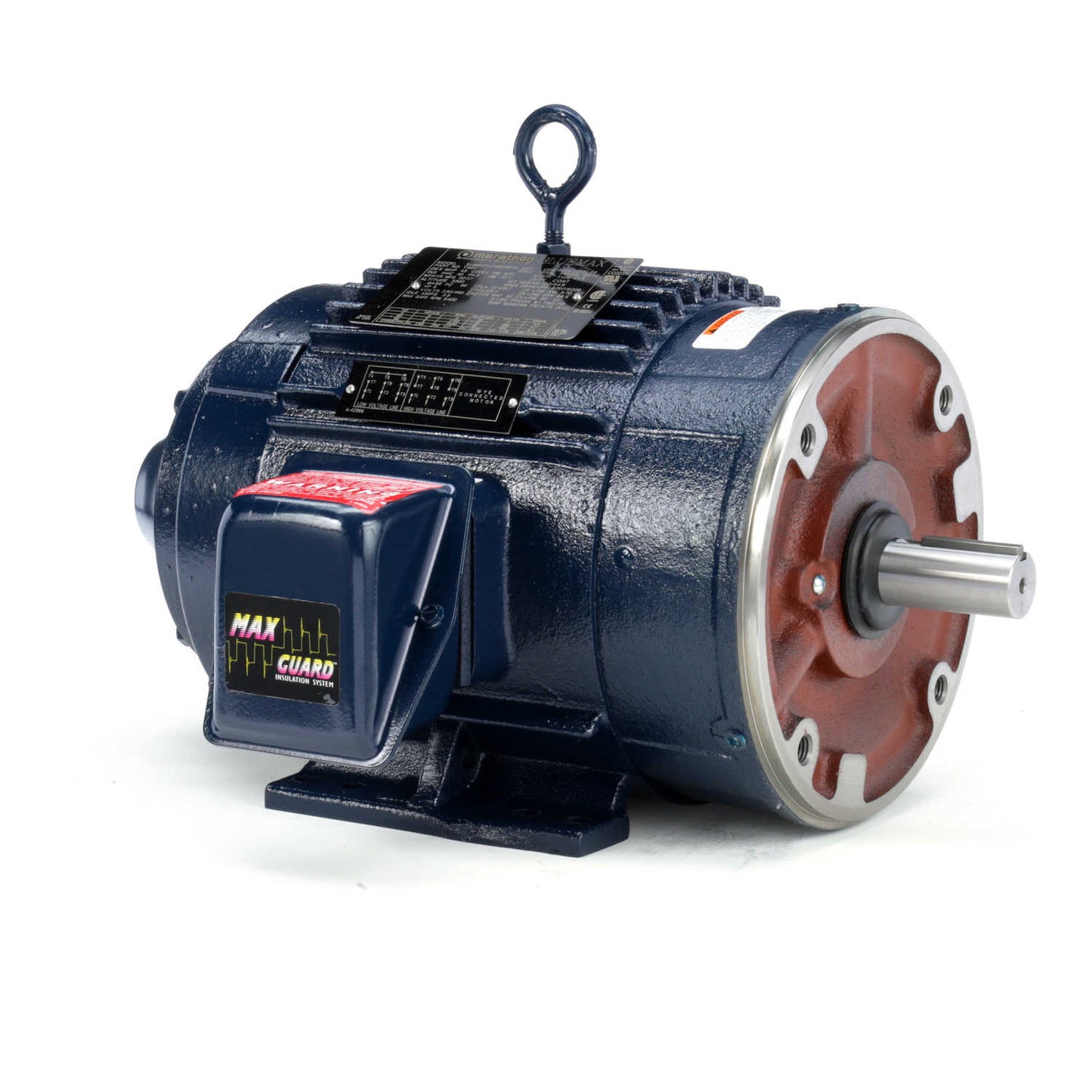

Marathon Electric Y509, 15 Hp, 1800 Rpm, 254TC FR, 230/460 V, TENV, C-Face Footed, Inverter Duty, Blue Max 2000, 254THTNA8058.

Y509, 15 Hp, 1800 Rpm, 254TC FR, 230/460 V, TENV, C-Face Footed, Inverter Duty, Blue Max 2000, 254THTNA8058.

Engineering Data

Output HP :15 HP
Output KW :11.2 kW
Frequency :60 Hz
Voltage :230/460 V
Current :40.5/20.2 A
Speed :1772 RPM
Service Factor :1
Phase :3
Efficiency :93 %
Duty :Continous
Insulation Class :H
Design Code :INV
KVA Code :K
Frame :254TC
Enclosure :Totally Enclosed Non Ventilated
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6309
Opp Drive End Bearing Size :6210
UL :Recognized
CSA :Y
CE :YIP Code :43
Technical Specifications
Electrical Type :Squirrel Cage Inverter Duty
Starting Method :Inverter Only
Poles :4
Rotation :Reversible
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Cast Iron
Shaft Type :T
Overall Length :23.38 in
Frame Length :10.50 in
Shaft Diameter :1.625 in
Shaft Extension :3.75 in
Assembly/Box Mounting :F1/F2 Capable
UPC :722856025081
