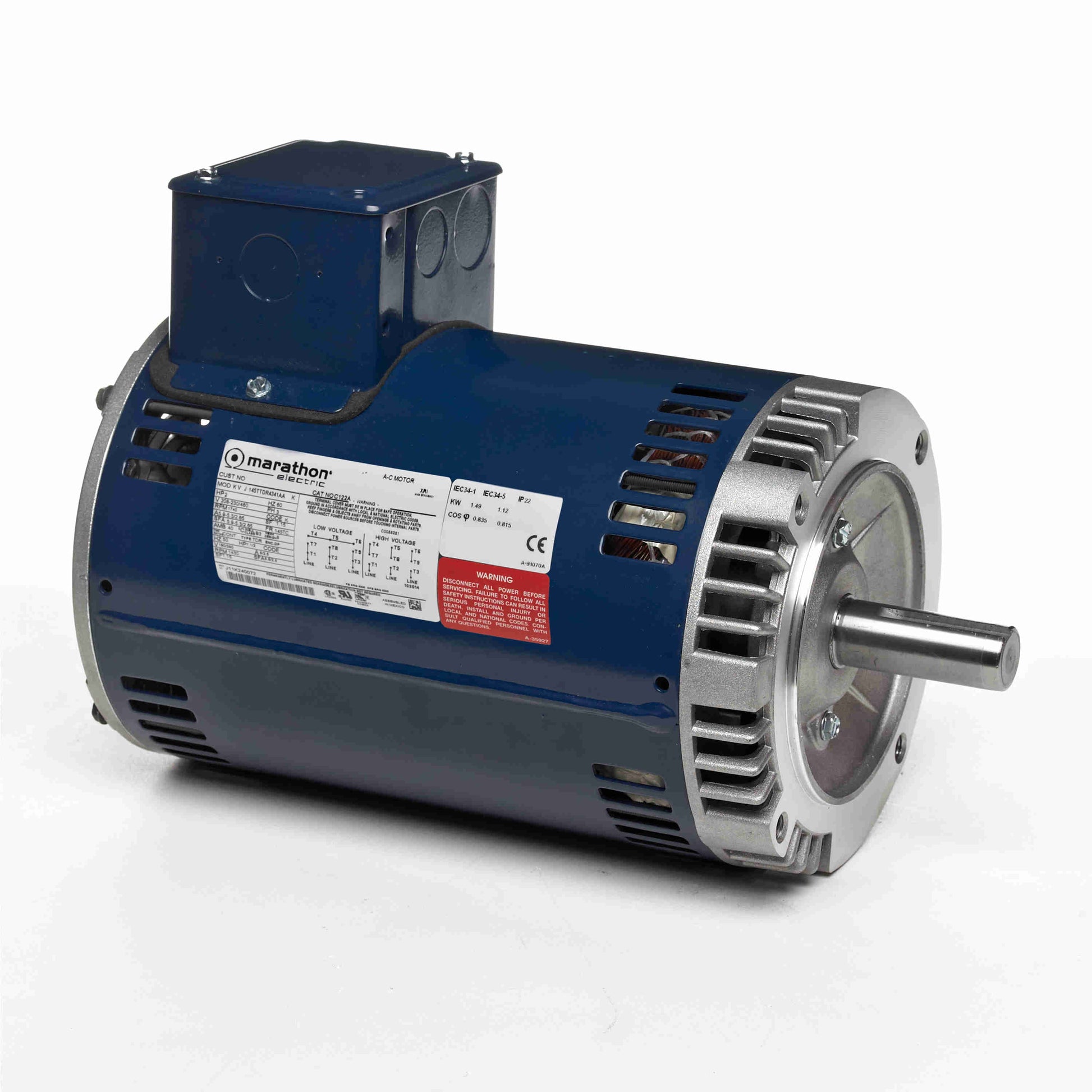

Marathon Electric Y521, 1 Hp, 1800 Rpm, 56C FR, 230 V, Totally Enclosed, C-Face Footless, Inverter Duty, MicroMAX, 56H17F2014.

Y521, 1 Hp, 1800 Rpm, 56C FR, 230 V, Totally Enclosed, C-Face Footless, Inverter Duty, MicroMAX, 56H17F2014.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:230 V
Current:3.2 A
Speed:1725 rpm
Service Factor:1
Phase:3
Efficiency:78.5 %
Power Factor:77.5
Duty:Continuous
Insulation Class:H
Design Code:INV
KVA Code:K
Frame:56C
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Inverter Duty
Starting Method:Inverter Only
Poles:4
Rotation:Reversible
Resistance Main:16.6 Ohms
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:12.44 in
Frame Length:7.50 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
Assembly/Box Mounting:F3
