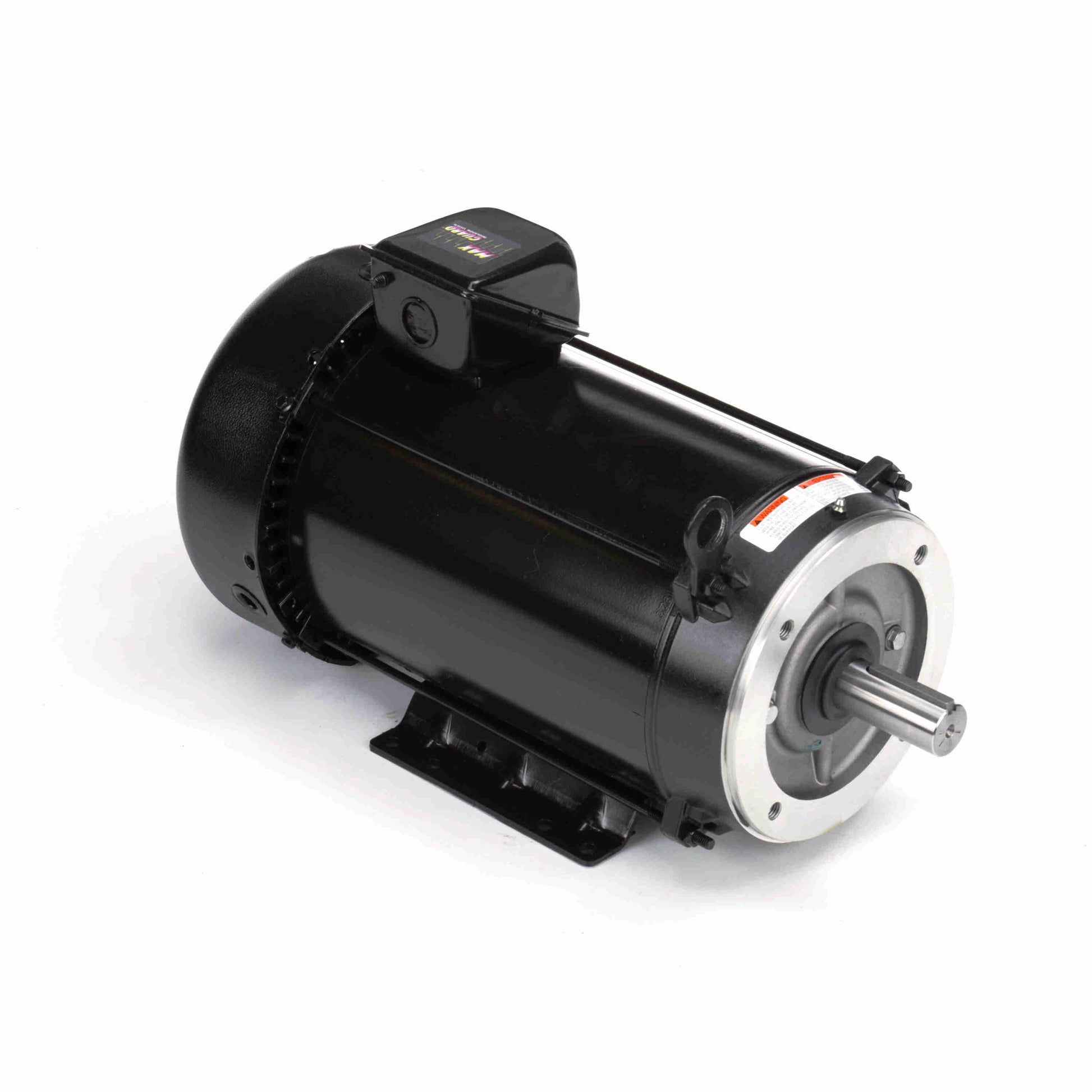

Marathon Electric Y522, 1 1/2 Hp, 1800 Rpm, 145TC FR, 230 Vac, 3 Ph, Totally Enclosed, C-Face Footed, Inverter Duty, MicroMAX, 145THTR5328.

Y522, 1 1/2 Hp, 1800 Rpm, 145TC FR, 230 Vac, 3 Ph, Totally Enclosed, C-Face Footed, Inverter Duty, MicroMAX, 145THTR5328.

Engineering Data

60 Hertz
HP 1 1/2
Voltage 230
kW 1.12 FL Amps 4.8
RPM 1800
FL Eff 85.5 % SF 1.0

Phase 3
Insulation Class H
Frame 145TC
Duty CONTINUOUS
Enclosure TENV Ambient 40
Mounting C-Face - Removable Base NEMA
Design A
Orientation HORIZONTAL
Starting Type INVERTER ONLY
Assembly F3 KVA
Code R
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 205
Opposite End Bearing Size 203
Weight 48.2 LB lbs
Inverter Speed Range CONSTANT 1000:1
CE Y CSA Y
UL Recognized Construction
Thermal Protection NOT
Electrical Type : Squirrel Cage Inverter Duty Starting
Method : Inverter Only
Poles : 4 Rotation : Reversible
Mounting : Bolt-on Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T Overall
Length : 13.48 in
Frame Length : 9.56 in
Shaft Diameter : 0.875 in
Shaft Extension : 2.12 in
Assembly/Box Mounting : F3
