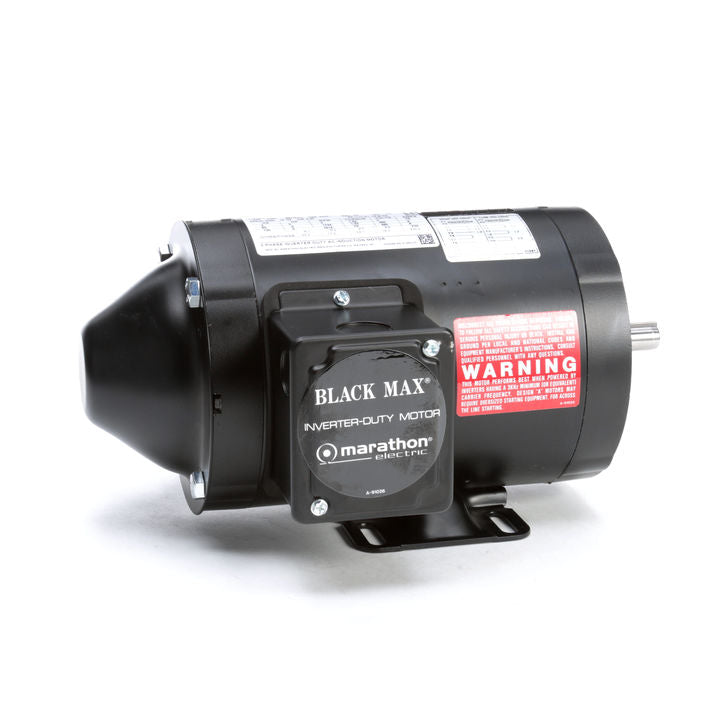

Marathon Electric Y534, 1/2 Hp, 1800 Rpm, 56C FR, 230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Tstat Over Load, Inverter Duty, Black Max, 56H17T5301.

Marathon Electric Y534, 1/2 Hp, 1800 Rpm, 56C FR, 230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Tstat Over Load, Inverter Duty, Black Max, 56H17T5301.

$1,394.00
$1,394.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,394.00 $1,324.30
Sale

Y534, 1/2 Hp, 1800 Rpm, 56C FR, 230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Tstat Over Load, Inverter Duty, Black Max, 56H17T5301.

Engineering Data

60 Hertz
HP 1/2
Voltage 230/460
kW .37
FL Amps 1.6/.8
RPM 1800
FL Eff 80 % SF 1.0

Phase 3
Insulation Class F
Frame 56C
Duty CONTINUOUS
Enclosure TENV
Ambient 40
Mounting C-Face - Removable Base
NEMA Design B
Orientation HORIZONTAL
Starting Type INVERTER ONLY
Assembly F1 ONLY
KVA Code L
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 203
Opposite End Bearing Size 203
Weight 35 LB lbs
Inverter Speed Range CONSTANT 1000:1
CE Y CSA Y
UL Recognized
Construction and Protector
Thermal Protection NOT Thermostats (Normally Closed)
