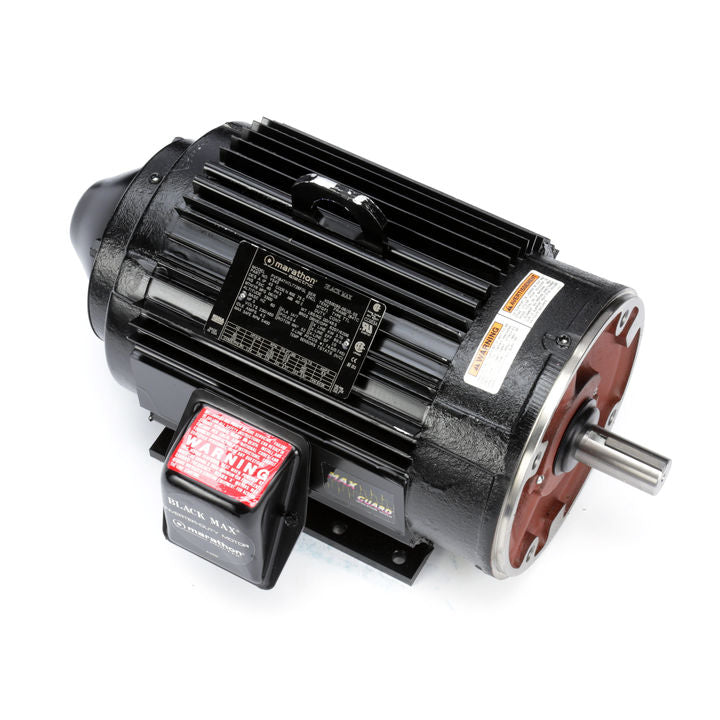

Marathon Electric Y543, 5 Hp, 1800 Rpm, 184TC FR, 230/460 Vac, 3PH, TENV, C-Face Footed, Inverter Duty Motor, 184THTL7726

Y543, 5 Hp, 1800 Rpm, 184TC FR, 230/460 Vac, 3PH, TENV, C-Face Footed, Inverter Duty Motor, 184THTL7726

Engineering Data

Output HP : 5 HP
Output KW : 3.7 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 14.0/7.0 A
Speed : 1765 RPM
Service Factor : 1
Phase : 3
Efficiency : 89.5 %
Duty : Continuous Insulation Class : F Design Code : INV
KVA Code : N
Frame : 184TC
Enclosure : Totally Enclosed Non Ventilated
Overload Protector : No
Ambient Temperature : 40 °
Drive End Bearing Size : 6207
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Inverter Duty
Starting Method : Inverter Only
Poles : 4
Rotation : Reversible
Mounting : Rigid Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Aluminum
Shaft Type : T
Overall Length : 18.93 in
Frame Length : 8.75 in
Shaft Diameter : 1.125 in
Shaft Extension : 2.62 in
Assembly/Box Mounting : F1/F2 Capable
UPC : 722856024794
Weight : 110.00 L
