Industrial Motors

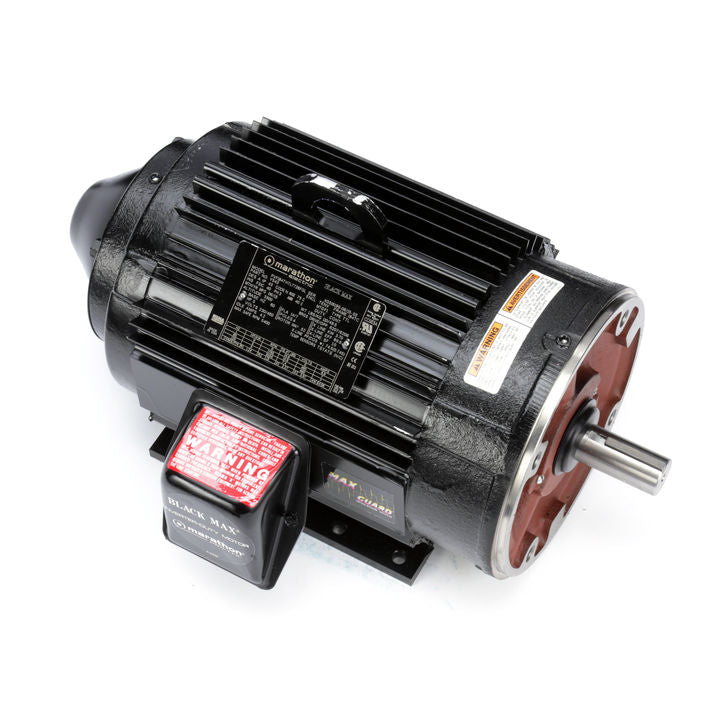

Marathon Electric Y543A, 5 Hp, 1800 Rpm, 184TC FR, 230/460 Vac, 3PH, TENV, C-Face Footed, Inverter Duty Motor, 184THTY7726

Marathon Electric Y543A, 5 Hp, 1800 Rpm, 184TC FR, 230/460 Vac, 3PH, TENV, C-Face Footed, Inverter Duty Motor, 184THTY7726

$1,679.94
$1,679.94
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,679.94 $1,595.95
Sale

Y543A, 5 Hp, 1800 Rpm, 184TC FR, 230/460 Vac, 3PH, TENV, C-Face Footed, Inverter Duty Motor, 184THTY7726

Engineering Data

60 Hertz
HP 5
Voltage 230/460
kW 3.7
FL Amps 13.4/6.7
RPM 1800
FL Eff 89.5 %
SF 1.0

Phase 3
Insulation Class F
Frame 184TC
Duty CONTINUOUS
Enclosure TENV
Ambient 40
Mounting C-Face Rigid
NEMA Design INV
Orientation HORIZONTAL
Starting Type INVERTER ONLY
Assembly F1 (F2 Modification Available)
KVA Code L
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 6207
Opposite End Bearing Size 6206
Weight 92 LB lbs
Inverter Speed Range
CONSTANT 1000:1
CE Y CSA Y
UL Recognized
Construction and Protector
Thermal Protection Thermostats (Normally Closed)
