Industrial Motors

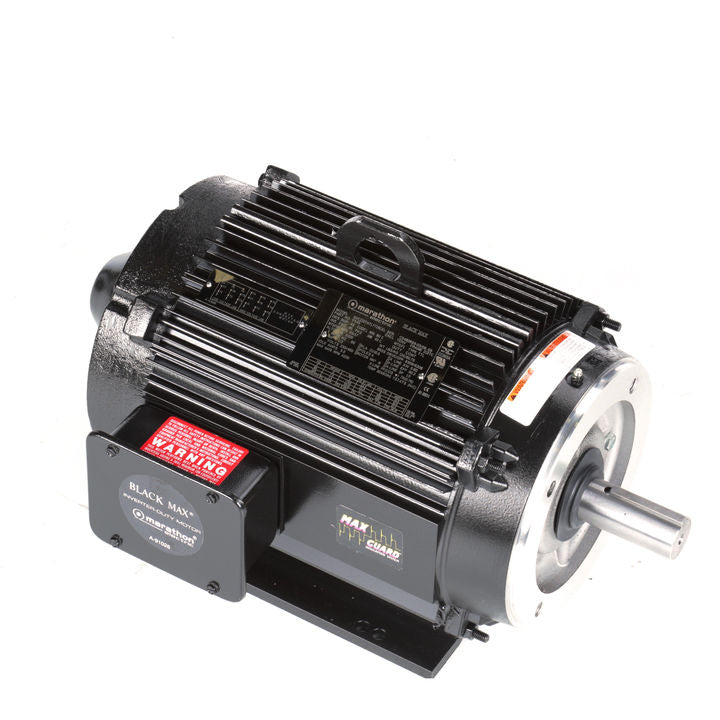

Marathon Electric Y545, 7 1/2 Hp, 1800 Rpm, 213TC FR, 230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Tstat over load, Inverter Duty, Black Max, 213THTL7726

Marathon Electric Y545, 7 1/2 Hp, 1800 Rpm, 213TC FR, 230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Tstat over load, Inverter Duty, Black Max, 213THTL7726

$2,466.75
$2,466.75
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$2,466.75 $2,343.42
Sale

Y545, 7 1/2 Hp, 1800 Rpm, 213TC FR, 230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Tstat over load, Inverter Duty, Black Max, 213THTL7726.

Engineering Data

60 Hertz
HP 7 1/2
Voltage 230/460
kW 5.6
FL Amps 21/10.5
RPM 1800
FL Eff 90.2 %
SF 1.0

Phase 3
Insulation Class F
Frame 213TC
Duty CONTINUOUS
Enclosure TENV
Ambient 40
Mounting C-Face Rigid
NEMA Design A
Orientation HORIZONTAL
Starting Type INVERTER ONLY
Assembly F1 (F2 Modification Available)
KVA Code L
Drive End Bearing BALL
IP Code 43
Opposite End Bearing BALL
Drive End Bearing Size 309
Opposite End Bearing Size 206
Weight 146 LB lbs
Inverter Speed Range
CONSTANT 1000:1
CE Y CSA Y
UL Recognized
Construction and Protector
Thermal Protection NOT
Thermostats (Normally Closed)

Encoder Information
Make NORTHSTAR Model SL56
Provisions PROVISIONS ONLY Pulse Count -1
