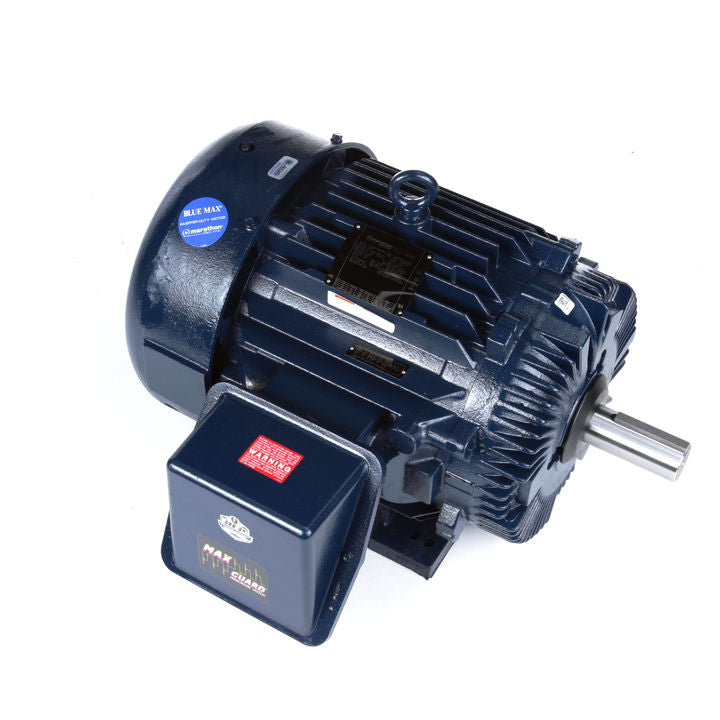

Marathon Electric Y574, 75 Hp, 1800 Rpm, 365T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Inverter Duty, Blue Max 2000, 365THFS8036

Y574, 75 Hp, 1800 Rpm, 365T FR, 230/460 Vac, 3 PH, TEFC, Rigid Base, Inverter Duty, Blue Max 2000, 365THFS8036.

Engineering Data

Output HP :75 HP
Output KW :56.0 kW
Frequency :60 Hz
Voltage :230/460 V
Current :184.0/92.0 A
Speed :1780 RPM
Service Factor :1
Phase :3
Efficiency :94.1 %
Duty :Continuous
Insulation Class :H
Design Code :INV
KVA Code :J
Frame :365T
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6314
Opp Drive End Bearing Size :6312
UL :Recognized
CSA :Y
CE :YIP Code :43
Technical Specifications
Electrical Type :Squirrel Cage Inverter Duty
Starting Method :Inverter Only
Poles :4
Rotation :Reversible
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Cast Iron
Shaft Type :T
Overall Length :34.71 in
Frame Length :14.50 in
Shaft Diameter :2.375 in
Shaft Extension :6.12 in
Assembly/Box Mounting :F1/F2 Capable
UPC :722856025272
