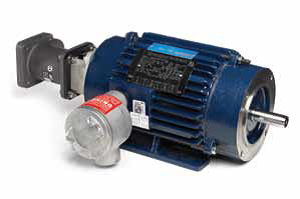

Marathon Electric Y980, 3 Hp, 1800 Rpm, 182TC FR, 230/460 V, TENV, C-Face Footed, Tstat Overload, Inverter Duty, Blue Max 2000, Explosion Proof w/Encoder, 182THES8048.

Y980, 3 Hp, 1800 Rpm, 182TC FR, 230/460 V, TENV, C-Face Footed, Tstat Overload, Inverter Duty, Blue Max 2000, Explosion Proof w/Encoder, 182THES8048.

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:230/460 V
Current:8.2/4.1 A
Speed:1742 rpm
Service Factor:1
Phase:3
Efficiency:86.5 %
Power Factor:81
Duty:Continuous
Insulation Class:F
Design Code:INV
KVA Code:L
Frame:182TC
Enclosure:Explosion Proof Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6207
Opp Drive End Bearing Size:6206
UL:Listed
CSA:Y
CE:NIP Code:54
Technical Specifications
Electrical Type:Squirrel Cage Inverter Duty
Starting Method:Inverter Only
Poles:4
Rotation:Reversible
Resistance Main:4.9 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:24.82 in
Frame Length:8.00 in
Shaft Diameter:1.125 in
Shaft Extension:2.62 in
Assembly/Box Mounting:F1/F2 CAPABLE
