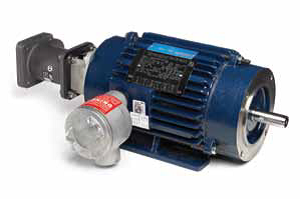

Marathon Electric Y981, 5 Hp, 1800 Rpm, 213TC FR, 230/460 Vac, TENV, C-Face Footed, Tstat Overload, Inverter Duty, Blue Max 2000, Explosion Proof w/Encoder, 213THES8053.

Y981, 5 Hp, 1800 Rpm, 213TC FR, 230/460 Vac, TENV, C-Face Footed, Tstat Overload, Inverter Duty, Blue Max 2000, Explosion Proof w/Encoder, 213THES8053.

Engineering Data

Output HP:5 Hp
Output KW:3.7 kW
Frequency:60 Hz
Voltage:230/460 V
Current:13.0/6.5 A
Speed:1765 rpm
Service Factor:1
Phase:3
Efficiency:90.2 %
Power Factor:79.5
Duty:Continuous
Insulation Class:F
Design Code:INV
KVA Code:K
Frame:213TC
Enclosure:Explosion Proof Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6309
UL:Listed
CSA:Y
CE:NIP Code:54
Technical Specifications
Electrical Type:Squirrel Cage Inverter Duty
Starting Method:Inverter Only
Poles:4
Rotation:Reversible
Resistance Main:1.82 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:26.17 in
Frame Length:8.75 in
Shaft Diameter:1.375 in
Shaft Extension:3.12 in
Assembly/Box Mounting:F1/F2 CAPABLE
